Overview

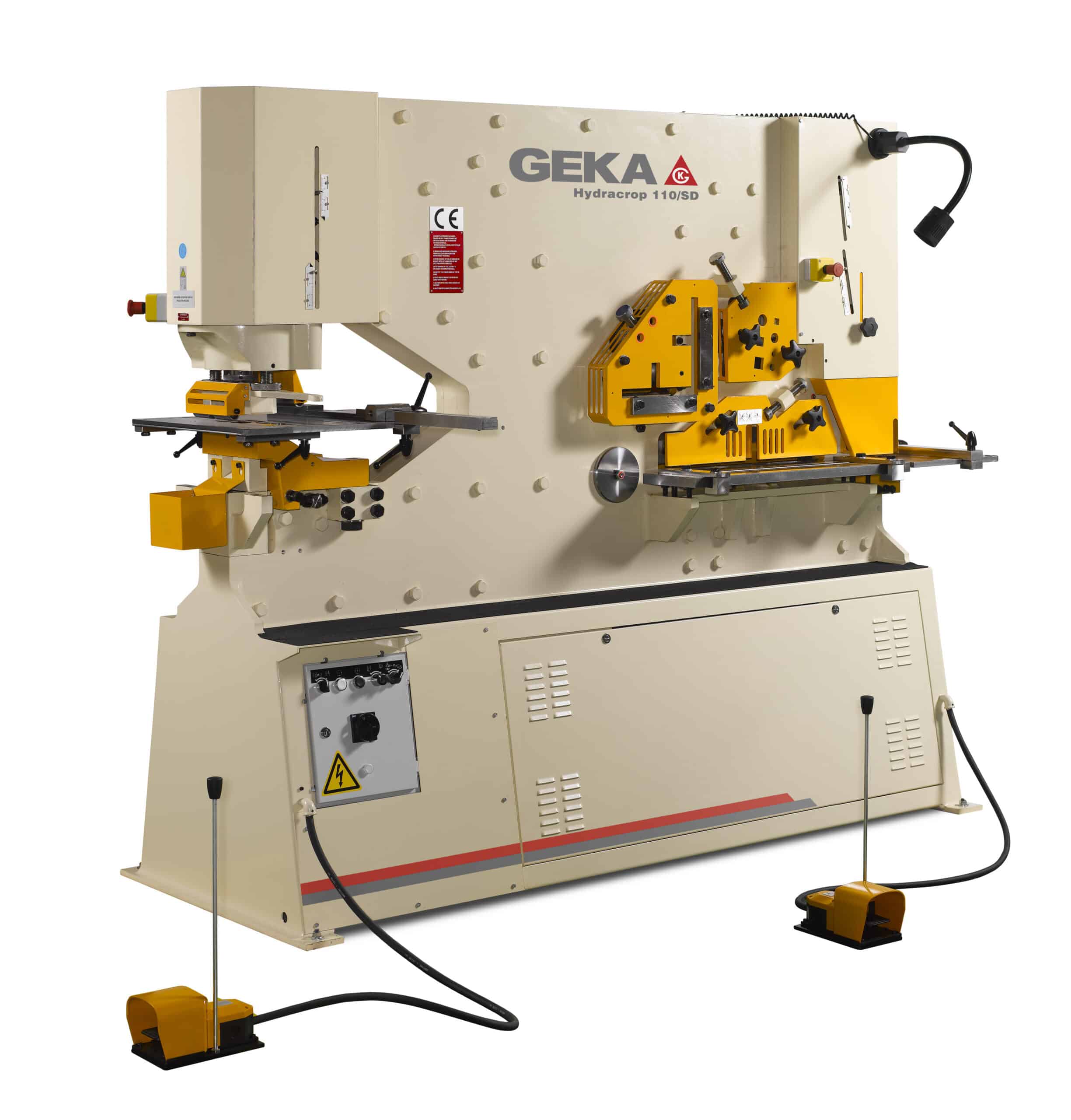

he GEKA HYDRACROP 110 is a heavy-duty hydraulic ironworker designed for punching, shearing, notching, and cutting a wide range of structural steel and plate. Multiple workstations combine key fabrication operations in one versatile machine. The HYDRACROP 110 is available in two versions based on punching throat depth: the S version with a 12″ standard throat and the SD version with a 24″ extended throat.

Specifications

• Flat Bar Capacity: 16″ × 3/4″ or 12″ × 1″
• Blade Length: 24″
• Angle Cutting at 45°: 4″
• Angle Capacity at 90°: 6″ × 6″ × 1/2″
• Round Bar Capacity: 2″
• Square Bar Capacity: 2″
• Notching Plate Thickness: 1/2″
• Notching Depth: 3 1/2″
• Notching Width: 2″
• Punching Power: 120 tons
• Punching Throat: 12″ (S) / 24″ (SD)
• Punch Stroke: 3 5/32″
• Punch Working Height: 45 3/8″
• Strokes Per Minute: 28
• Motor: 12.5 HP
• Net Weight: 6,060 lbs (S) / 7,275 lbs (SD)
