Geka Hydracrop 110AD Two Cylinder Ironworker

Specifications

Description

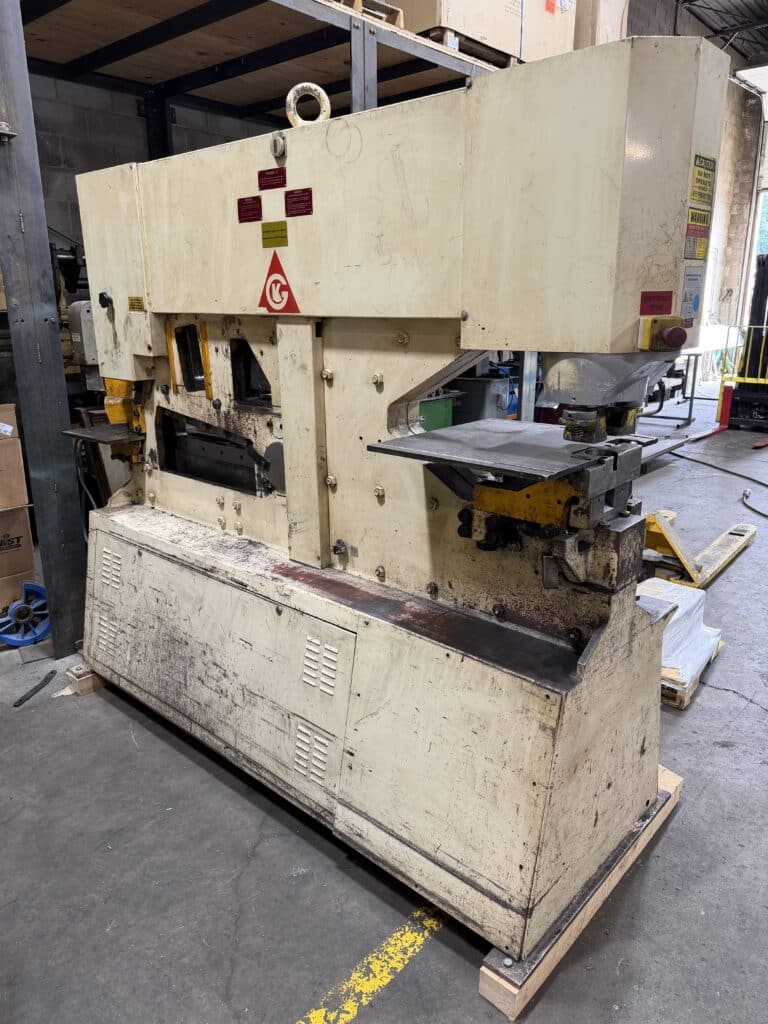

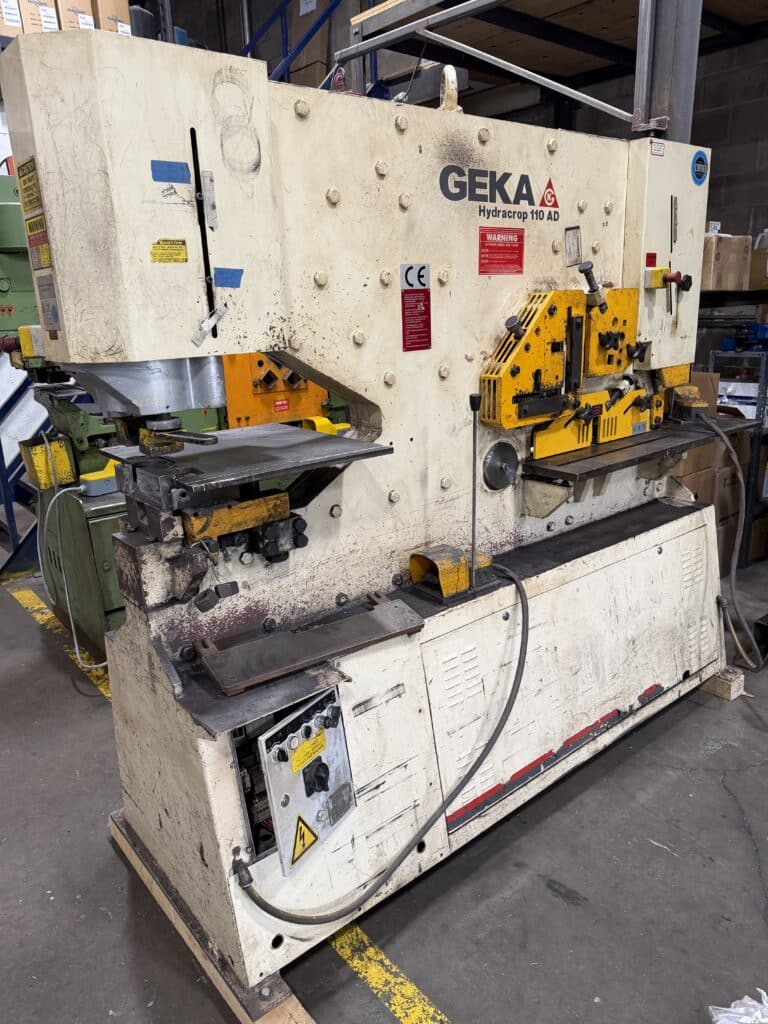

Ritchie & Sons is pleased to offer this 2011 GEKA Hydracrop 110 hydraulic ironworker. Built in Spain, the Hydracrop series is known throughout the metal fabrication industry for its heavy-duty construction, precision, and long service life. The two-cylinder design allows two operators to work independently at separate stations, making it an excellent choice for fabrication shops looking to increase productivity.

The Hydracrop 110 features five integrated workstations, allowing a single machine to perform a wide variety of fabrication operations including:

• Punching
• Angle shearing
• Flat bar shearing
• Round and square bar cutting
• Rectangular notching

With a 110-ton punching capacity, the machine is well suited for structural steel fabricators, miscellaneous metals shops, ornamental iron contractors, stair and railing manufacturers, machine shops, and general fabrication facilities. The independent punching cylinder provides fast, accurate punching while the second hydraulic cylinder powers the shearing and notching stations, allowing simultaneous operation by two users.

Standard Capacity

• 110-ton punching station
• Maximum punch capacity: up to 1.57″ diameter in thinner material (capacity varies with material thickness)
• Angle shear capacity: up to 6″ × 6″ × 1/2″
• Flat bar shear: up to 24″ × 5/8″
• Round bar shear: up to 2″
• Square bar shear: up to 2″
• Rectangular notcher
• Dual independent hydraulic cylinders
• Foot pedal controls
• Five integrated workstations

Like all of our used machinery, this GEKA ironworker has been inspected by our technicians and is available for inspection under power at our Wilmington, Massachusetts showroom. Contact Ritchie & Sons for pricing, additional photographs, tooling information, or to schedule a demonstration.

Included Accessories

• Electric length stop
• Gauging tables on the punch and notcher ends
• Work lamp
