Cleat Benders
Cleat Benders
Manually operated cleat benders for forming uniform drive cleat edges on rectangular ductwork.
Overview
Tennsmith Cleat Benders are manually operated sheet metal forming tools designed to produce uniform drive cleat edges on rectangular ductwork quickly and efficiently.
The upper handle forms the cleat, while the lower handle opens the tool for easy removal of the material. This straightforward operation allows fabricators to form consistent cleat edges in seconds without additional setup or adjustment.
Heavy cast iron and fabricated steel construction provides durability and long service life in HVAC duct fabrication environments. Designed for dependable, trouble-free operation, Tennsmith Cleat Benders offer a practical solution for improving productivity in ductwork manufacturing and installation.

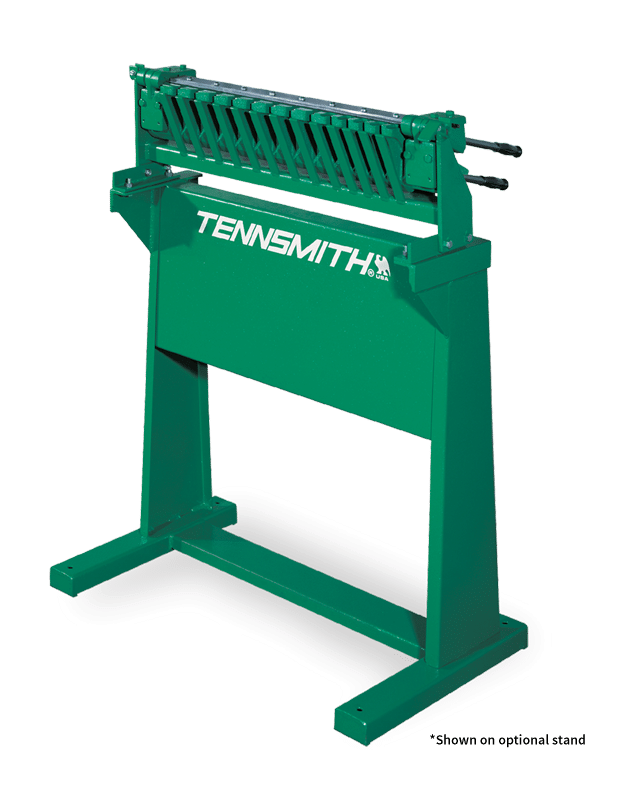

The series includes the CB18, CB24, and CB30 models, providing multiple working lengths to accommodate different fabrication requirements. An optional stand is available.
Choose a Model
Select a model to view the machine and highlight its specifications below.
18-inch manually operated cleat bender for forming drive cleat edges on rectangular ductwork.
Request Quote for CB18Compare Cleat Benders Models
| Specification | CB18 | CB24 | CB30 |
|---|---|---|---|
| Mild Steel Capacity | 20 ga | 20 ga | 20 ga |
| Maximum Bending Length | 18" | 24" | 30" |
| Depth of Cleat Drive | 1/2" | 1/2" | 1/2" |
| Dimensions (L × W × H), Handles Removed | 25-1/2" × 12-1/2" × 12-1/2" | 32" × 10" × 11" | 38" × 10" × 11-1/2" |
| Shipping Weight | 63 lbs | 95 lbs | 150 lbs |
On mobile, swipe left or right to compare models.
Need help choosing the right model?
Contact Ritchie & Sons for pricing, availability, additional specifications, or help selecting the right machine for your application.
