Mandrel Bending Machines
Mandrel Bending Machines
Ercolina mandrel tube and pipe benders range from versatile NC semi-automatic machines to large-capacity CNC production benders for precise, repeatable bending of tube, pipe, square, and rectangular profiles.
Overview
Ercolina offers a complete range of mandrel tube and pipe bending machines for applications ranging from prototype and small-lot fabrication to automatic production and large-profile industrial bending.

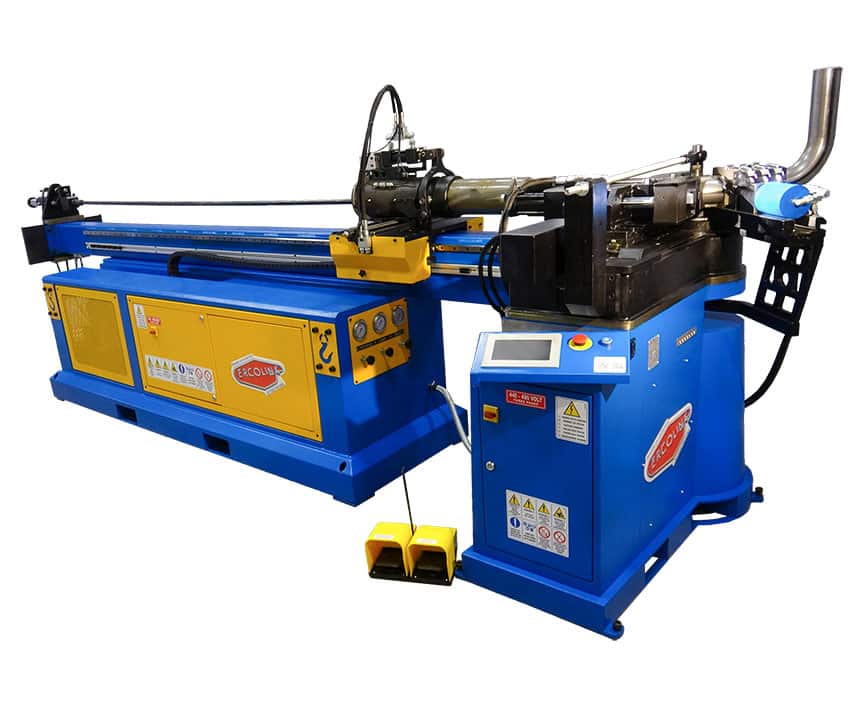

The lineup includes the versatile 030 Mandrel Bender, the dedicated TB80 semi-automatic mandrel bender, the 65CNC3V1 and 76CNC6V5 three-axis CNC automatic benders, and the large-profile GB100CNC, GB130CNC, and GB200CNC Giga Benders.
Available capabilities include programmable bend angles, material springback compensation, automatic mandrel positioning, precision positioning, stored programs, and hydraulic clamping, pressure die, and boost functions depending on the model.
With capacities ranging from 2-1/2″ mild steel tube on the 030 and 65CNC3V1 to 6-1/2″ mild steel tube on the GB200CNC, Ercolina offers mandrel bending solutions for a wide range of fabrication and production requirements.
Choose a Model
Select a model to view the machine and highlight its specifications below.
Versatile NC semi-automatic mandrel bender with capacity to 2-1/2" mild steel and stainless tube, 2" square tube, and 1-1/2" Schedule 40 pipe. The 030 can perform both standard rotary draw and internally supported mandrel bending, making it well suited for shops handling a mix of bending applications.
Request Quote for 030Compare Mandrel Bending Machines Models
| Specification | 030 | TB80 | Model 65 | Model 76 | GB100 | GB130 | GB200 |
|---|---|---|---|---|---|---|---|
| Mild Steel Tube Capacity | 2-1/2" (.083 wall) | 3" (.125 wall) | 2-1/2" (.083 wall) | 3" (.083 wall) | 4-3/4" (.187 wall) | 5" (.196 wall) | 6-1/2" (.187 wall) |
| Stainless Tube Capacity | 2-1/2" (.065 wall) | 3" (.083 wall) | 2-1/2" (.065 wall) | 3" (.065 wall) | 4-3/4" (.187 wall) | 5" (.150 wall) | 6" (.187 wall) |
| Square Tube Capacity | 2" (.065 wall) | 2-1/2" (.083 wall) | — | 2" (.065 wall) | 4-1/2" (.125 wall) | 4" (.160 wall) | 4" (.187 wall) |
| Maximum Pipe Capacity | 1-1/2" Schedule 40 | 2-1/2" Schedule 10 | 1-1/2" Schedule 40 | 2" Schedule 40 | 3" Schedule 40 | 4" Schedule 40 | 6" Schedule 40 |
| Minimum Bend Radius | 1.5 × tube diameter | 1.5 × tube diameter | 1.5 × tube diameter | 1.5 × tube diameter | 1.5 × diameter | 1.5 × diameter | 1.3 × diameter |
| Operation | NC Semi-Automatic | NC Semi-Automatic | 3-Axis CNC Automatic | 3-Axis CNC Automatic | CNC | CNC | CNC |
| Electrical | 220V or 480V 3-Phase | 220V or 480V 3-Phase | 480V 3-Phase | 480V 3-Phase | 480V 3-Phase | 480V 3-Phase | 480V 3-Phase |
On mobile, swipe left or right to compare models.
Need help choosing the right model?
Contact Ritchie & Sons for pricing, availability, additional specifications, or help selecting the right machine for your application.
