Medi Benders

Portable electromechanical rotary draw bender for bending tube, pipe, and profiles on the job site or in the shop.

Overview

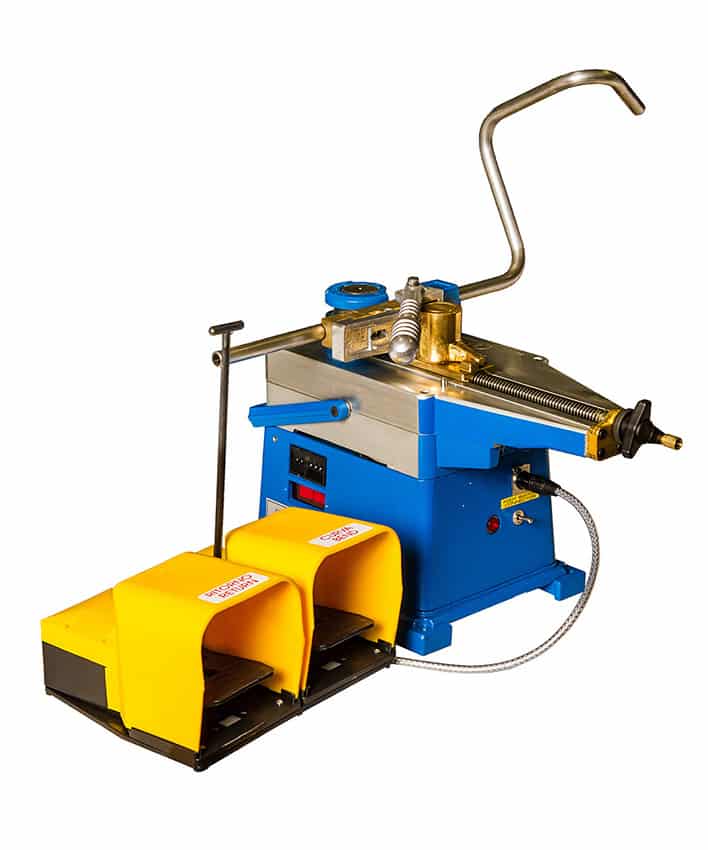

Ercolina 070 Medi Bender is a portable rotary draw bending machine designed for fabricators and contractors who need accurate tube, pipe, and profile bending capabilities in the shop or on the job site.

The Medi Bender 070 features an electromechanical drive system without hydraulic components, providing reliable operation in a compact, portable design. A rotary dial allows operators to set bend angles and compensate for springback.

A patented quick-change tooling system accommodates multiple bending radii, while a swing-away counterbending die vise simplifies material positioning and removal. A remote foot pedal provides hands-free operation during bending.

The machine operates on standard 120V single-phase power, with a 220V option available. Supplied with a carrying case and tool kit, the Medi Bender 070 offers a practical solution for portable tube and pipe fabrication.

Specifications

Ercolina 070 Medi Bender technical specifications

Specification
070 Medi Bender
Mild Steel Tube Capacity
Up to 1-1/4″ OD × .065″ wall
Pipe Capacity
Up to 1″ Schedule 10
Square Tube Capacity
Up to 3/4″ × .120″ wall
Minimum Centerline Radius
2D
Maximum Centerline Radius
6-7/8″
Bending Method
Non-Mandrel Rotary Draw
Bend Angle Control
Rotary Dial with Springback Adjustment
Tooling System
Patented Quick-Change Tooling
Bending Radii
Multiple Radii Available
Counterbending Die
Patented Swing-Away Vise
Operation
Remote Foot Pedal for Hands-Free Bending
Drive System
Electromechanical
Hydraulics
No Hydraulic Components
Electrical
120V Single Phase (220V Available)
Portability
Portable for Job Site Applications
Included Accessories
Carrying Case and Accessories
