Flagler Pittsburgh and flanging machines for forming locks and flanges in HVAC and sheet metal fabrication applications, with models ranging from portable and light-gauge machines to high-speed production equipment.
Overview
Flagler Pittsburgh and flanging machines provide a range of options for HVAC and sheet metal fabrication shops, from portable and light-gauge Pittsburgh machines to higher-capacity and high-speed production models.
The Pittsburgh lineup includes models for material from 24 gauge and lighter through 20 gauge applications, with production speeds ranging from approximately 17 to 100 feet per minute depending on the model. Select models also accept auxiliary tooling for additional forming operations.
Flagler power flangers provide options for forming consistent flanges in material from 20 gauge and lighter through 16 gauge, while the hand flanger offers a simple manual solution for forming flanges around both inside and outside curves.
Choose a Model
Select a model to view the machine and highlight its specifications below.

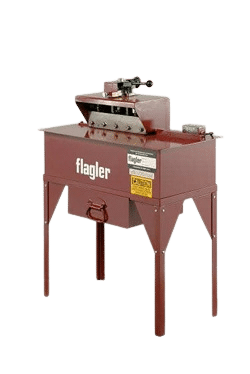

Compact Pittsburgh machine for 24 gauge and lighter material with a 5/16" pocket depth and production speed of approximately 30 feet per minute.
Request Quote for Flagler 24 Junior PittsburghCompare Pittsburgh & Flanging Machines Models

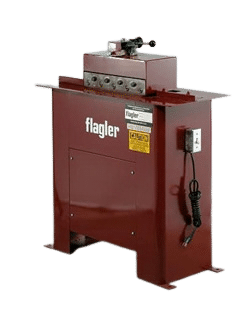

| Specification | Flagler 24 Junior Pittsburgh | Flagler 22 Ga. Portable Pittsburgh | Flagler 20 Ga. Standard Pittsburgh | Flagler 20 Ga. High Speed Pittsburgh | Flagler 20 Power Flanger Machine | Flagler 18 Power Flanger Machine | Flagler 16 Power Flanger Machine | Flagler Hand Flanger Machine |
|---|---|---|---|---|---|---|---|---|
| Capacity | 24 gauge and lighter | 22 gauge and lighter | 20–26 gauge | 20–26 gauge | 20 gauge and lighter | 18–22 gauge | 16–20 gauge | — |
| Pocket / Flange | 5/16" pocket depth | 5/16" pocket depth | 5/16" pocket depth | 5/16" pocket depth | 7/32" flange | 1/4" flange | 3/8" flange | 7/32" flange |
| Speed | Approx. 30 FPM | Approx. 17 FPM | Approx. 23 FPM | Approx. 100 FPM | Approx. 25 FPM | Approx. 18 FPM | Approx. 18 FPM | Manual |
On mobile, swipe left or right to compare models.
