GEKA Bendicrop Series
GEKA Bendicrop Series
Versatile hydraulic ironworkers for punching, flat bar shearing, angle cutting, notching, and bending, with a dedicated bending station for increased flexibility.
Overview
The GEKA Bendicrop Series combines punching, shearing, notching, cutting, and bending capabilities in a versatile hydraulic ironworker. A dedicated bending station allows bending operations while keeping the machine equipped for a wide range of fabrication tasks.

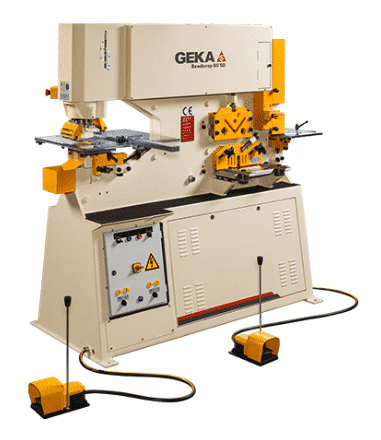

The series includes the Bendicrop 50, Bendicrop 60, and Bendicrop 85. Each model provides multiple workstations for punching, flat bar shearing, angle cutting, notching, and bending, with increasing capacities across the series to suit a range of metal fabrication applications.
Choose a Model
Select a model to view the machine and highlight its specifications below.

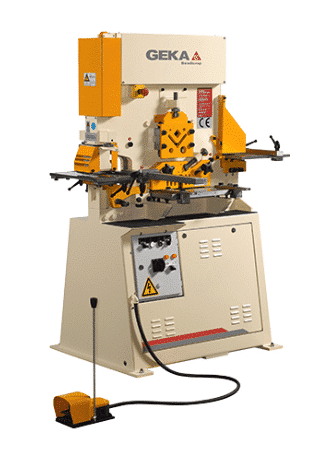

Compact hydraulic ironworker with six workstations and a permanent built-in bending station for punching, shearing, notching, cutting, and bending operations.
Request Quote for Bendicrop 50Compare Bendicrop Series Models
| Specification | Bendicrop 50 | Bendicrop 60 | Bendicrop 85 |
|---|---|---|---|
| Max. Punching | 1-1/4" × 1/2"; 1-1/16" × 1/2" | 1-1/2" × 7/16" | 1-1/2" × 1/2" |
| Punching Throat | — | S: 10"; SD: 20" | S: 12"; SD: 20" |
| Flat Bar Shearing | 14" × 9/16"; (5°) 14" × 1/2" | 14" × 9/16"; (5°) 14" × 1/2" | 18" × 5/8"; (5°) 18" × 3/4" |
| Angle Cut 90° | 3" × 3" × 5/16" | 4" × 4" × 1/2" | 4" × 4" × 1/2" |
| Notching | Rectangular 4" × 3/8" | Triangular 4" × 3/8" | Triangular 5" × 1/2" |
| Bending | 4" × 3/8" | 6" × 3/8" | 8" × 1/2" |
On mobile, swipe left or right to compare models.
Need help choosing the right model?
Contact Ritchie & Sons for pricing, availability, additional specifications, or help selecting the right machine for your application.
