GEKA Hydracrop Series
GEKA Hydracrop Series
Two-cylinder hydraulic ironworkers designed for versatile punching, shearing, notching and metalworking applications, with five workstations and simultaneous two-operator capability.
Overview

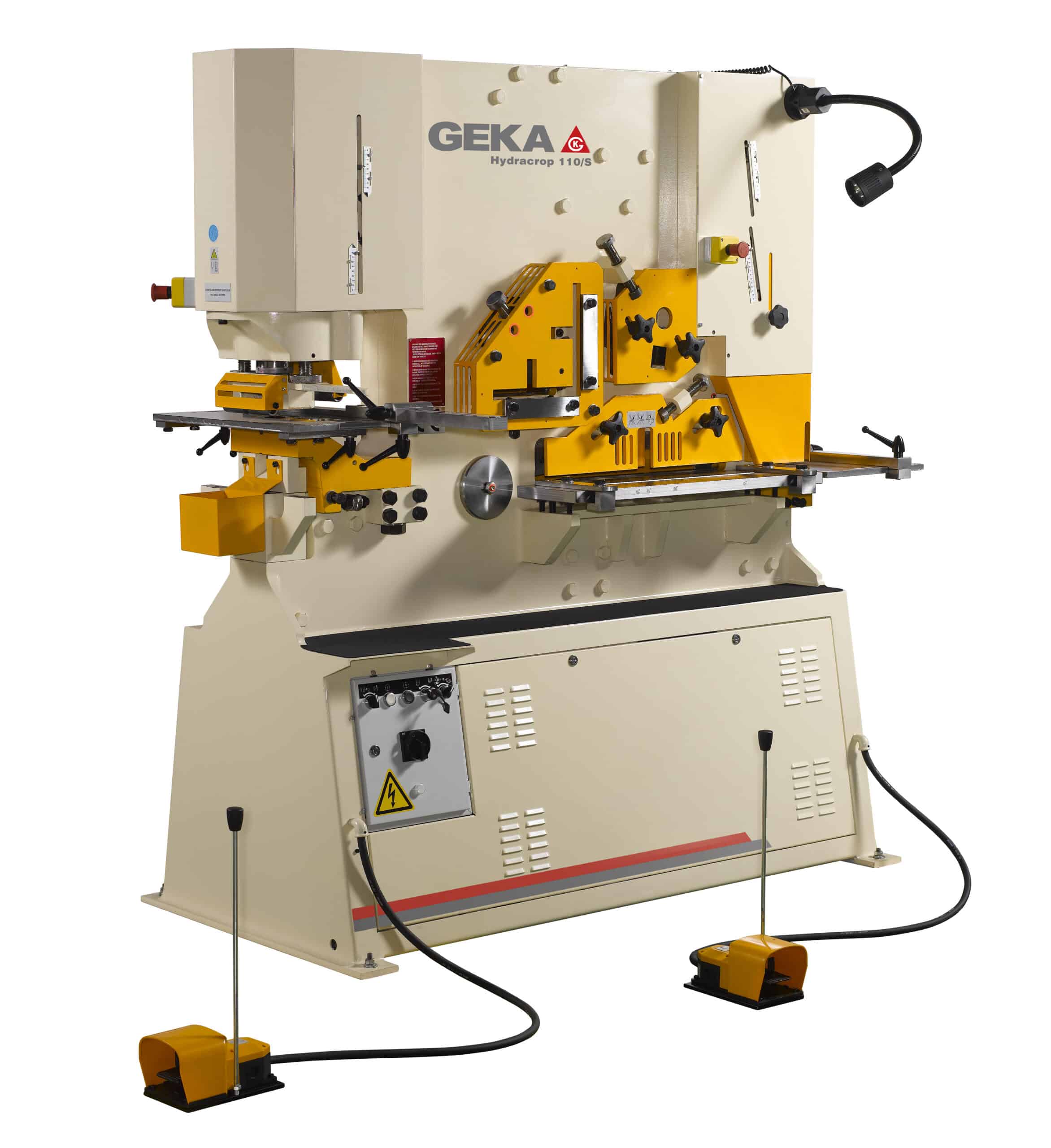

The GEKA Hydracrop Series is a line of two-cylinder hydraulic ironworkers designed for versatile, high-capacity metalworking applications. With two independent working areas, Hydracrop machines allow two operators to work simultaneously for increased productivity.
Each Hydracrop model features five workstations for punching, notching, flat bar and plate shearing, angle cutting, and round and square bar shearing. A wide range of optional tooling and accessories allows the machines to be configured for specific fabrication requirements.
The Hydracrop Series includes five capacity levels, from the Hydracrop 55/110 through the Hydracrop 220/300. Each model is available in an S version or an SD version with a deeper throat for larger plate and sheet metal applications.
Choose a Model
Select a model to view the machine and highlight its specifications below.

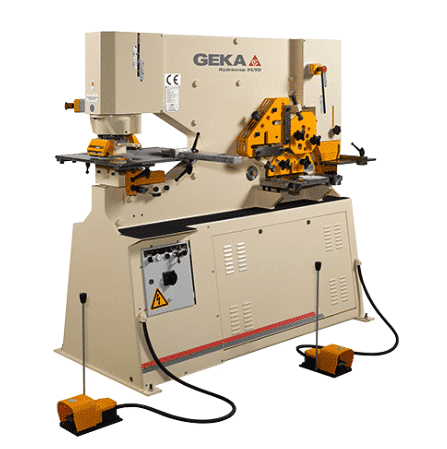

Two-cylinder hydraulic ironworker with 60 US tons of punching power, 110 US tons of shearing power, and five workstations for punching, shearing, notching, angle cutting, and bar cutting.
Request Quote for Hydracrop 55/110Compare GEKA Hydracrop Series Models
| Specification | Hydracrop 55/110 | Hydracrop 80/150 | Hydracrop 110/180 | Hydracrop 165/300 | Hydracrop 220/300 |
|---|---|---|---|---|---|
| Max Punching Ø | 1-1/2" × 3/8" | 1-1/16" × 1/2" | 1-1/16" × 1/2" | 1-1/2" × 1/2" | 1-1/2" × 1-1/2" |
| Flat Bar Shearing | 12" × 5/8" / 8" × 3/4" | 18" × 5/8" / 12" × 3/4" | 24" × 5/8" / 16" × 3/4" | 30" × 3/4" / 16" × 1-1/8" | 30" × 3/4" / 16" × 1-1/8" |
| Bar Shearing | 1-5/8" | 1-3/4" | 2" | 2-3/8" | 2-3/8" |
| Angle Cut 45° | 2-3/4" × 2-3/4" × 1/4" | 2-3/4" × 2-3/4" × 1/4" | 2-3/4" × 2-3/4" × 1/4" | 2-3/4" × 2-3/4" × 1/4" | 2-3/4" × 2-3/4" × 1/4" |
| Angle Cut 90° | 4-3/4" × 4-3/4" × 3/8" | 5-1/8" × 5-1/8" × 1/2" | 6" × 6" × 1/2" | 8" × 8" × 3/4" | 8" × 8" × 3/4" |
| Notching | 3/8" thickness | 1/2" thickness | 1/2" thickness | 5/8" thickness | 5/8" thickness |
On mobile, swipe left or right to compare models.
Need help choosing the right model?
Contact Ritchie & Sons for pricing, availability, additional specifications, or help selecting the right machine for your application.
