GEKA Minicrop

Hydraulic Ironworker

Compact single-cylinder hydraulic ironworker with 50 tons of punching power for punching, angle cutting, flat bar shearing, section cutting, and notching.

Punching Power 50 US Tons
Punching Capacity 1-1/16" × 1/2"
Angle Cutting 3" × 3" × 5/16"
Request Quote

Overview

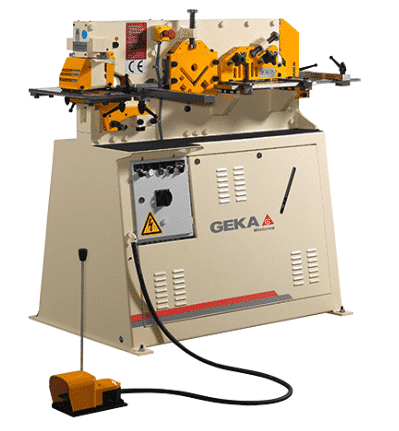

The GEKA Minicrop is a compact single-cylinder hydraulic ironworker designed for versatile metal fabrication applications. It combines punching, angle cutting, flat bar shearing, section cutting, and rectangular notching capabilities in one machine.

The Minicrop features a gooseneck die holder for punching profiles, legs, and webs, along with a range of openings for cutting round and square bars. Its radial-geometry flat bar blade is designed to minimize deformation during shearing, while the rectangular notching station includes a precision-machined worktable and scaled stops.

A wide range of optional tooling and accessories is available for additional punching and notching applications. The Minicrop can also be offered in a 220V single-phase configuration.

Specifications

GEKA Minicrop technical specifications

Specification
Minicrop
Punching
Power: 50 US Tons Capacity: 1-1/16″ × 1/2″
Angle Cutting
90°: 3″ × 3″ × 5/16″
Flat Bar Shearing
Capacity: 10″ × 3/8″ Capacity: 8″ × 1/2″
Notching
Capacity: 2″ × 1-1/2″ × 1/4″
Electrical
Available Configuration: 220V Single Phase
