Horizontal pivot band saws with powered hydraulic mitering for demanding fabrication and machine shop applications.
Overview
Get unmatched, heavy-duty mitering with HYDMECH’s M Series Horizontal Pivot Band Saws. These fully hydraulic, heavy-duty scissor-style machines are built to withstand the high demands of machine and fabrication shops, trailer and automotive manufacturers, and other demanding applications.
M Series saws are designed to cut tubing, channels, angles, solids, light- to medium-grade alloys, non-ferrous materials, and stainless steel. Powered hydraulic saw heads make mitering easy with the push of a button, with an optimum mitering range of up to 60° and indexing from 33″ to 120″ in a single stroke.
The M Series is available in semi-automatic and fully automatic models with cutting capacities of up to 30″. Models in this series are also available with a Programmable Miter option.
Choose a Model
Select a model to view the machine and highlight its specifications below.

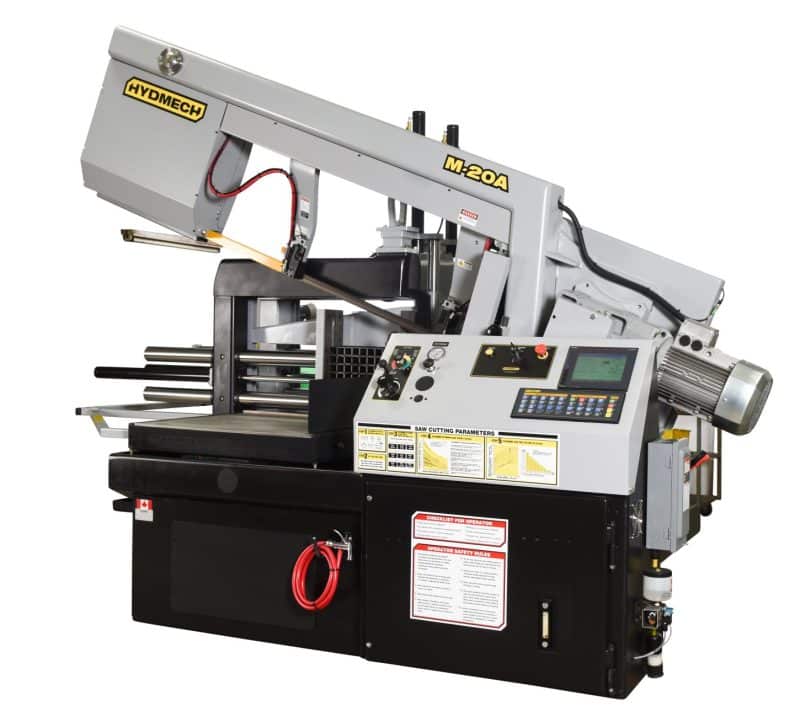

Fully automatic heavy-duty horizontal pivot mitering band saw with programmable mitering, automatic indexing up to 33" per stroke, and up to 20" × 30" rectangular capacity at 90°.
Request Quote for M-20ACompare M Series Models
| Specification | M-20A | M-20A-120 |
|---|---|---|
| 90° Rectangular Capacity | 20" H × 30" W | 20" H × 30" W |
| 90° Round Capacity | 20" | 20" |
| 45° Rectangular Capacity | 20" × 19" | 20" × 19" |
| 45° Round Capacity | 20" | 20" |
| 30° Rectangular Capacity | 20" × 12" | 20" × 12" |
| 30° Round Capacity | 14" | 14" |
| Blade Size | 1½" × 20' 6" | 1½" × 20' 6" |
| Blade Speed | 50–350 SFM | 50–350 SFM |
| Blade Drive | 10 HP VFD | 10 HP VFD |
| Mitering | Automatic Programmable, 90°–30° | Automatic Programmable, 90°–30° |
| Indexing | Automatic Multi-Index, up to 33" per stroke | Automatic Multi-Index, up to 120" per stroke |
| Vise Type | Hydraulic, Full Capacity, Full Stroke | Hydraulic, Full Capacity, Full Stroke |
| Feed System | Hydraulic Positive Down Feed | Hydraulic Positive Down Feed |
| Work Load | 8,000 lbs | 8,000 lbs |
| Machine Weight | 8,950 lbs | 12,700 lbs |
| Table Height | 35" | 35" |
| Machine Dimensions | 129" × 128" × 110" | 129" × 210" × 110" |
| Layout Drawing | View PDF | View PDF |
On mobile, swipe left or right to compare models.
