HYDMECH V Series
HYDMECH V Series
Vertical tilt-frame band saws offering flexible two-way mitering for structural, solid, and production cutting applications.
Overview
HYDMECH V Series vertical tilt-frame band saws are built for heavy-duty, high-performance cutting with the flexibility to handle two-way miters. Available in semi-automatic and automatic configurations, the series is designed for solid and structural material across a wide range of fabrication and production applications. Depending on model, V Series machines offer cutting capacities up to 30 inches and automatic bar-feed options up to 120 inches.
Choose a Model
Select a model to view the machine and highlight its specifications below.

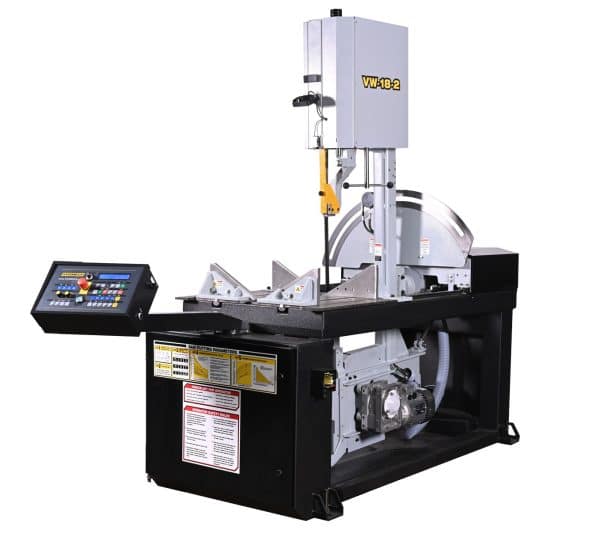

Semi-automatic vertical tilt-frame band saw with 22" × 18" rectangular capacity, a 5 HP drive, and versatile miter cutting for light- to medium-duty applications.
Request Quote for VW-18-2Compare HYDMECH V Series Models
| Specification | VW-18-2 | V-18-45 | V-18-60 | V-18APC-60 | V-18APC-60-60 | V-21 | V-21/26APC | V-25 | V-25APC |
|---|---|---|---|---|---|---|---|---|---|
| 90° Rectangular Capacity | 22" × 18" | 31" × 18" | 23" × 18" | 22" × 18" | 22" × 18" | 26" × 21" | 26" × 21" | 30" × 25" | 30" × 25" |
| 90° Round Capacity | 17 1/2" | 18" (tall vise) | 18" (tall vise) | 18" | 18" | 21" | 21" | 25" | 25" |
| Miter Range | Up to 60° Right | 45° Left to 45° Right | 60° Left to 60° Right | 60° Left to 60° Right | 60° Left to 60° Right | 60° Left to 60° Right | 60° Left to 60° Right | 60° Left to 60° Right | 60° Left to 60° Right |
| Blade Drive | 5 HP VFD | 7.5 HP VFD | 7.5 HP VFD | 7.5 HP VFD | 7.5 HP VFD | 10 HP VFD | 10 HP VFD | 10 HP VFD | 10 HP VFD |
| Blade Speed | 65–385 SFM | 65–385 SFM | 65–385 SFM | 65–385 SFM | 65–385 SFM | 65–385 SFM | 65–385 SFM | 75–350 SFM | 75–350 SFM |
| Automatic Multi-Indexing | — | — | — | 40" | 60" | — | 60" (120" optional) | — | 60" (120" optional) |
| Operation | Semi-Automatic | Semi-Automatic | Semi-Automatic | Automatic | Automatic | Semi-Automatic | Automatic | Semi-Automatic | Automatic |
| Layout Drawing |
On mobile, swipe left or right to compare models.
Need help choosing the right model?
Contact Ritchie & Sons for pricing, availability, additional specifications, or help selecting the right machine for your application.
