Manual Slip Roll Series
Manual Slip Roll Series
Roper Whitney manual roll bending machines provide reliable, precision forming for a wide range of sheet metal applications, with models available in forming lengths from 12" to 48" and capacities up to 14 gauge mild steel.
Overview
Roper Whitney manual roll bending machines are built for accurate, dependable sheet metal forming across a range of shop applications. The lineup includes compact rolls for lighter work as well as heavier-duty models for thicker material and longer forming lengths.
Models feature precision-turned high carbon steel rolls, enclosed gearing, and removable or lift-up upper rolls for easier workpiece removal. Select models also include multiple wiring grooves for forming wire edges and other detailed profiles.
With forming lengths ranging from 12″ to 48″ and capacities ranging up to 14 gauge mild steel, the Roper Whitney manual roll lineup offers options for HVAC, architectural sheet metal, automotive, fabrication, vocational training, and general metalworking applications.

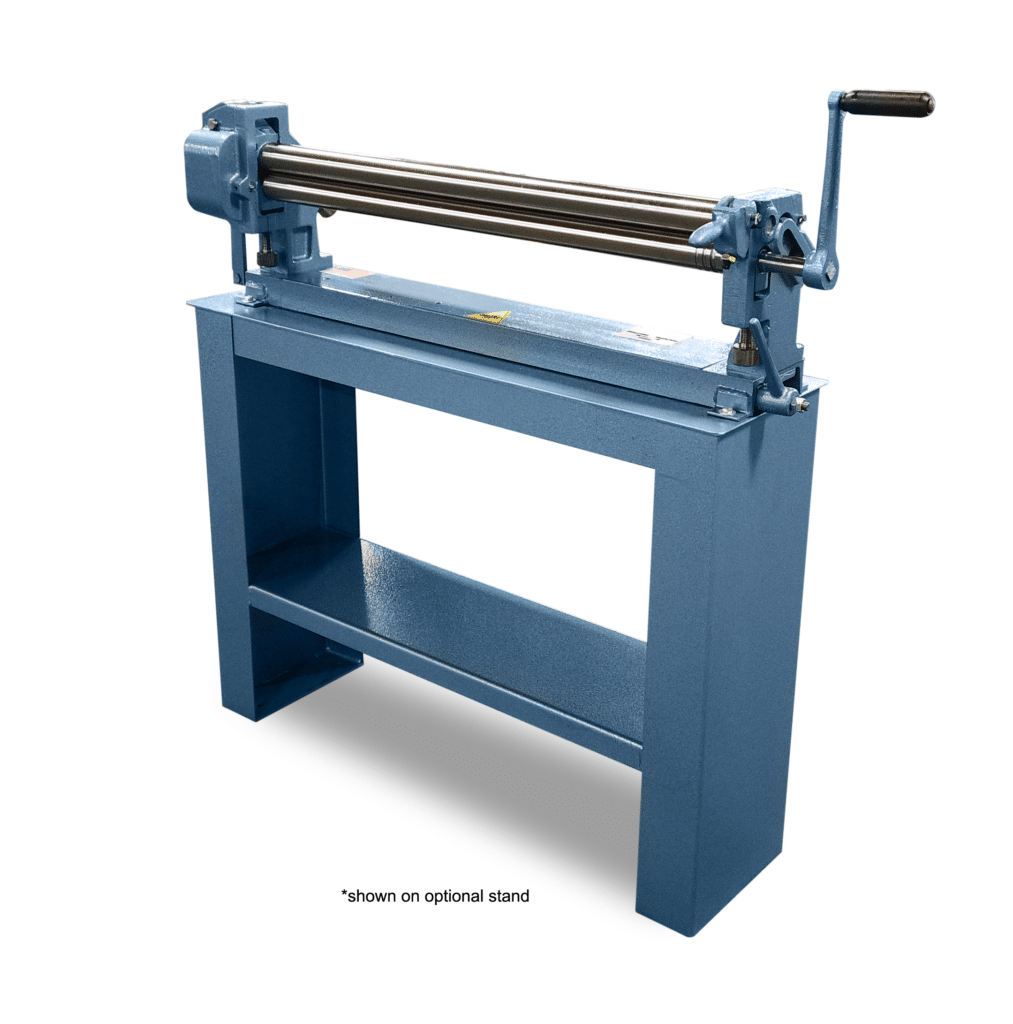

Choose a Model
Select a model to view the machine and highlight its specifications below.
24 ga mild steel capacity|42" maximum forming length
Request Quote for No. 0381Compare Manual Slip Roll Series Models
| Specification | SR-12 | No. 383 | No. 381 | No. 0381 | No. 416 | No. 418 |
|---|---|---|---|---|---|---|
| Maximum Forming Length | 12" | 24" | 36" | 42" | 36" | 48" |
| Mild Steel Capacity | 22 ga | 20 ga | 22 ga | 24 ga | 14 ga | 16–18 ga |
| Roll Diameter | 1" | 2" | 2" | 2" | 3" | 3" |
| Minimum Forming Radius | 1/2" | 1" | 1" | 1" | 1.5" | 1.5" |
| Wiring Grooves | 1/8", 1/16" | 3/16", 1/4", 5/16" | 3/16", 1/4", 5/16" | 3/16", 1/4", 5/16" | 3/8", 1/2", 5/8" | 3/8", 1/2", 5/8" |
| Weight | 28 lbs | 188 lbs | 245 lbs | 265 lbs | 720 lbs | 793 lbs |
| Dimensions | 17" × 8" × 12" | 43" × 11" × 15" | 55" × 11" × 15" | 61" × 11" × 15" | 69" × 19" × 19" | 81" × 19" × 19" |
| Gearing Ratio | — | — | — | — | 4:1 | 4:1 |
On mobile, swipe left or right to compare models.
