Marvel #8 Mark II

Marvel #8 Mark II
Contact for Availability

Marvel #8 Mark II

Vertical Tilt-Frame Band Saw

Heavy-duty vertical tilt-frame band saw with 18" × 22" rectangular capacity at 90°, a 5 HP blade drive, 1" blade, and miter cutting up to 45° left and right.

90° Capacity 18" × 22"
Blade Drive 5 HP
Blade Speed 50–450 FPM
Request Quote

Overview

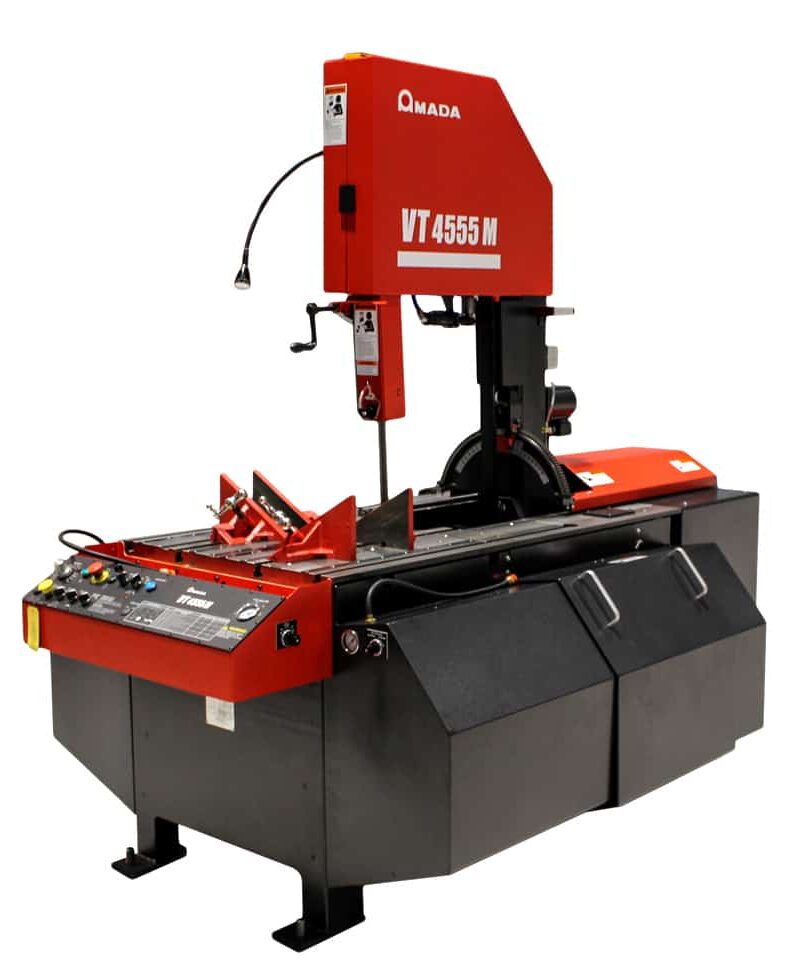

The Marvel #8 Mark II (VT4555) is a heavy-duty vertical tilt-frame band saw designed for versatile metal cutting applications. Its all-mechanical design, cast iron construction, and large T-slotted work table provide a rugged platform for straight and miter cutting.

The #8 Mark II provides an 18″ round and 18″ × 22″ rectangular cutting capacity at 90°, with miter cutting up to 45° left and right. A 5 HP blade drive, 1″ blade, inverter-controlled variable blade speed, clutch power feed, pneumatic blade tension, and quick-action vise support reliable cutting across a range of fabrication applications.

Specifications

Marvel VT4555 technical specifications

Specification
VT4555
Cutting Capacity
90° Round: 18″ 90° Rectangular: 18″ × 22″ 45° Round: 12.75″ 45° Rectangular: 18″ × 12.75″
Miter Range
0–45° Left & Right
Blade Drive
5 HP
Blade Size
14’6″ × .035″ × 1″
Blade Speed
50–450 FPM
Blade Feed Force
0–140 lbs
Cutting Control
Clutch Power Feed
Blade Tension
Pneumatic
Maximum Vise Opening
20″
Work Load Capacity
4,996 lbs
Work Table
24.25″ × 33″
Table Height
34.5″
Coolant Tank Capacity
19.8 gal
Machine Dimensions
52.64″ × 94.4″ × 84.5″
Machine Weight
2,867 lbs

Interested in this machine?

Contact Ritchie & Sons for pricing, availability, additional specifications, or help determining if this machine is right for your application.
