Marvel  ·  Vertical Tilt-Frame Saw

#8 Mark III

Semi-automatic vertical tilt-frame band saw with 17.5" cutting capacity at 90°, a 5 HP blade drive, 1-1/4" blade, and miter cutting up to 60° left and right.

90° Capacity 17.5"
Blade Drive 5 HP
Blade Speed 50–450 FPM
Request Quote

Overview

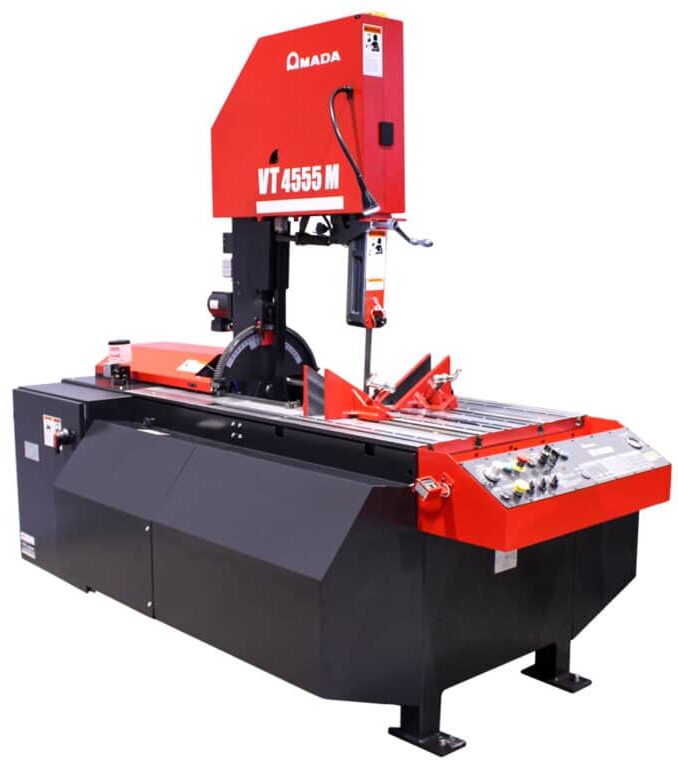

The Marvel #8 Mark III (VT4555M) is a semi-automatic vertical tilt-frame band saw designed for versatile metal cutting applications. Its cast iron construction, large T-slotted work table, and standard 3° forward-canted column provide a rugged platform for efficient cutting of structural and general fabrication materials.

The #8 Mark III provides 17.5″ cutting capacity at 90° and miter cutting up to 60° left and right. A 5 HP blade drive, 1-1/4″ blade, inverter-controlled variable blade speed, clutch power feed, pneumatic blade tension, and quick-action vise support reliable, precise cutting across a wide range of applications.

Specifications

Marvel VT4555M technical specifications

Specification
VT4555M
90° Round Cutting Capacity
17.5″
45° Right Round Cutting Capacity
14.5″
45° Left Round Cutting Capacity
13″
60° Right Round Cutting Capacity
9.7″
60° Left Round Cutting Capacity
7.3″
90° Rectangle Cutting Capacity
17.5″ × 22″
45° Right Rectangle Cutting Capacity
17.5″ × 14.5″
45° Left Rectangle Cutting Capacity
17.5″ × 13″
60° Right Rectangle Cutting Capacity
17.5″ × 9.7″
60° Left Rectangle Cutting Capacity
17.5″ × 7.3″
Miter Range
0–60° Left & Right
Column Cant
3° Forward
Blade Drive
5 HP
Blade Size
15’4″ x 0.042″ x 1-1/4″
Blade Speed
50–450 FPM
Blade Feed Force
0–250 lbs
Cutting Control
Clutch Power Feed
Blade Tension
Pneumatic
Work Load Capacity
4,996 lbs
Work Table
24.25″ × 33″
Table Height
38″
Coolant Tank Capacity
19.8 gal
Machine Dimensions
94.7″ × 99.2″ × 90.8″
Machine Weight
2,867 lbs

Interested in this machine?

Contact Ritchie & Sons for pricing, availability, additional specifications, or help determining if this machine is right for your application.
