Nitto Kohki HS Series
Nitto Kohki HS Series
Portable double-acting hydraulic punchers for mild and stainless steel, featuring automatic operation with an inching function for manual control.
Overview
The Nitto Kohki SELFER ACE HS Series consists of portable double-acting hydraulic punchers designed for hole-making in mild and stainless steel. The double-acting design provides controlled punching and return operation, while an inching function allows manual operation when needed.

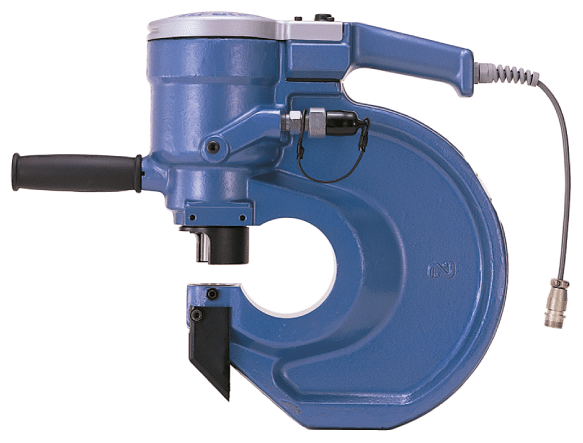

The HS Series includes the HS06-1322, HS07-1624, and HS11-1624. Maximum output ranges from 37 to 47 tf, with mild steel punching capacity up to 16 mm thick and 24 mm in diameter. The three models provide different throat depths and capacities to suit a range of fabrication applications.
Choose a Model
Select a model to view the machine and highlight its specifications below.

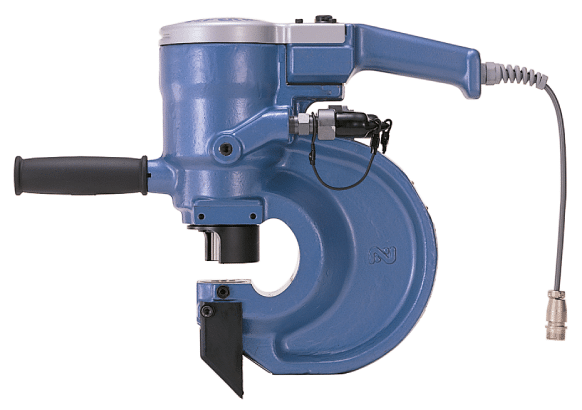

Compact 37-ton portable double-acting hydraulic puncher with a 2.36" throat depth and mild steel punching capacity up to 0.51" thick and 0.87" in diameter.
Request Quote for HS06-1322Compare HS Series Models
| Specification | HS06-1322 | HS07-1624 | HS11-1624 |
|---|---|---|---|
| Max. Throat Depth | 2.36" | 2.76" | 4.33" |
| Mild Steel – Max. Punching Thickness | 0.51" | 0.63" | 0.63" |
| Mild Steel – Max. Punching Diameter | 0.87" | 0.94" | 0.94" |
| Stainless Steel – Max. Punching Thickness | 0.24" | 0.24" | 0.24" |
| Stainless Steel – Max. Punching Diameter | 0.87" | 0.94" | 0.94" |
| Punching Time | 7.9 sec. | 11.8 sec. | 11.8 sec. |
| Returning Time | 3.4 sec. | 5.7 sec. | 5.7 sec. |
| Max. Output | 37 tons | 47 tons | 47 tons |
| Ram Stroke | 0.83" | 0.98" | 0.98" |
| Weight | 45.2 lbs. | 56.2 lbs. | 66.1 lbs. |
On mobile, swipe left or right to compare models.
