Air & Hydraulic Shears
Air & Hydraulic Shears
Powered squaring shears combining Tennsmith’s rugged shear construction with fast, convenient air or hydraulic operation.
Overview
Tennsmith Air & Hydraulic Squaring Shears combine the proven features of Tennsmith foot shears with the speed and convenience of powered operation.
The 36A and 52A air-powered models use heavy-duty, tie-rod-type pneumatic cylinders and provide up to 40 strokes per minute in capacity materials. Standard air equipment includes a foot-operated air valve control, pressure regulator, air gauge, oiler/condensate cups, and neoprene-padded hold-down feet.

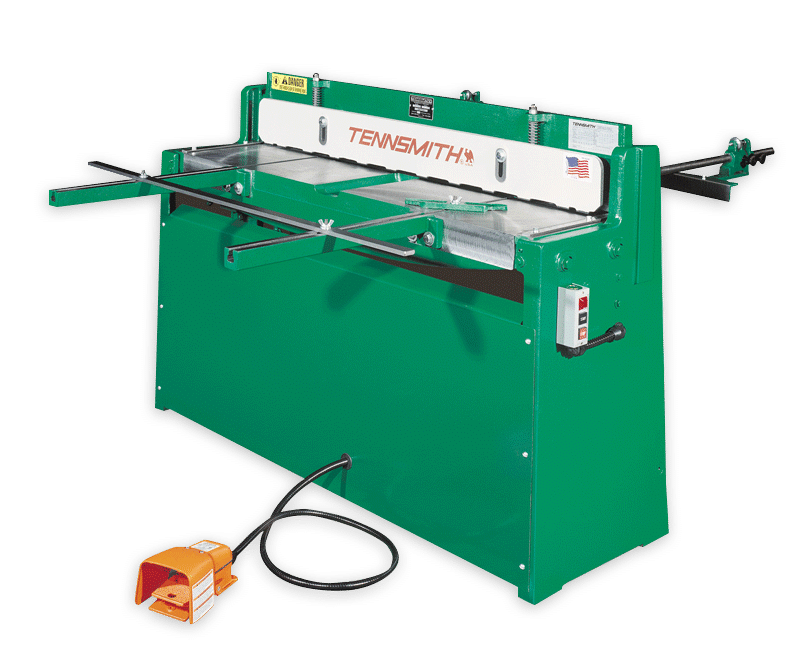

The 52H uses a low-maintenance hydraulic system and cycles at up to 45 strokes per minute. Its hydraulic unit features a solenoid-actuated valve, 3 HP electric motor, self-contained pump, pressure gauge, check valve, and industrial-quality cylinders. Electrical safety features include a low-voltage foot switch, magnetic starter, enclosed electrical box, and protected wiring.
All models are equipped with four-edge high-carbon/high-chromium (HCHC) blades. Standard equipment also includes a back gauge, front extension arms with stop, bevel gauge, and graduated side scales. A squaring arm is available as an option.
Choose a Model
Select a model to view the machine and highlight its specifications below.
Air-powered squaring shear with 37" cutting length, 16-gauge mild steel capacity, 20-gauge stainless steel capacity, and up to 40 strokes per minute.
Request Quote for 36ACompare Air & Hydraulic Shears Models
| Specification | 36A | 52A | 52H |
|---|---|---|---|
| Mild Steel Capacity | 16 GA | 16 GA | 16 GA |
| Stainless Steel Capacity | 20 GA | 20 GA | 20 GA |
| Maximum Cutting Length | 37" | 52-1/4" | 52-1/4" |
| Back Gauge Range | 30" | 30" | 30" |
| Front Gauge Range | 37" | 37" | 37" |
| Full-Length Strokes | 40 SPM | 40 SPM | 45 SPM |
| Maximum Operating Pressure | 75 PSI | 75 PSI | 1,450 PSI |
| Air Consumption Per Stroke | 1.1 cu. ft. | 1.33 cu. ft. | N/A |
| Motor | N/A | N/A | 3 HP |
| Dimensions | 46-1/4" × 24" × 42" | 61" × 25" × 42" | 61" × 25" × 42" |
| Shipping Weight | 800 lbs | 1,085 lbs | 1,300 lbs |
On mobile, swipe left or right to compare models.
Need help choosing the right model?
Contact Ritchie & Sons for pricing, availability, additional specifications, or help selecting the right machine for your application.
