LM Series Shears
LM Series Mechanical Shears
Heavy-duty mechanical shears available in multiple cutting lengths and capacities, featuring Tennsmith's 2X back gauge, four-edge HCHC blades, and precision-machined tables for accurate, consistent cutting.
Overview
The Tennsmith LM Series offers a broad range of heavy-duty mechanical shears designed for accurate, dependable sheet metal cutting in fabrication and production environments.
LM Series models feature Tennsmith’s 2X back gauge system for fast and accurate material positioning. Depending on the model, the back gauge provides a 24″ or 30″ range and can be positioned quickly with only two rotations of the handle. An optional digital readout is available for added positioning accuracy.
Standard features include four-edge high-carbon/high-chromium (HCHC) blades, solid-bar hold-downs with non-marring urethane inserts, continuous and job stroke cycles, motor reverse switch, a precision-machined table, and dual inch/metric inlaid bed scales.
The LM Series is available in a range of cutting lengths and capacities to accommodate different fabrication requirements. Select models are also available with powered back gauge systems and optional Performance Package configurations for enhanced material handling.
Choose a Model
Select a model to view the machine and highlight its specifications below.

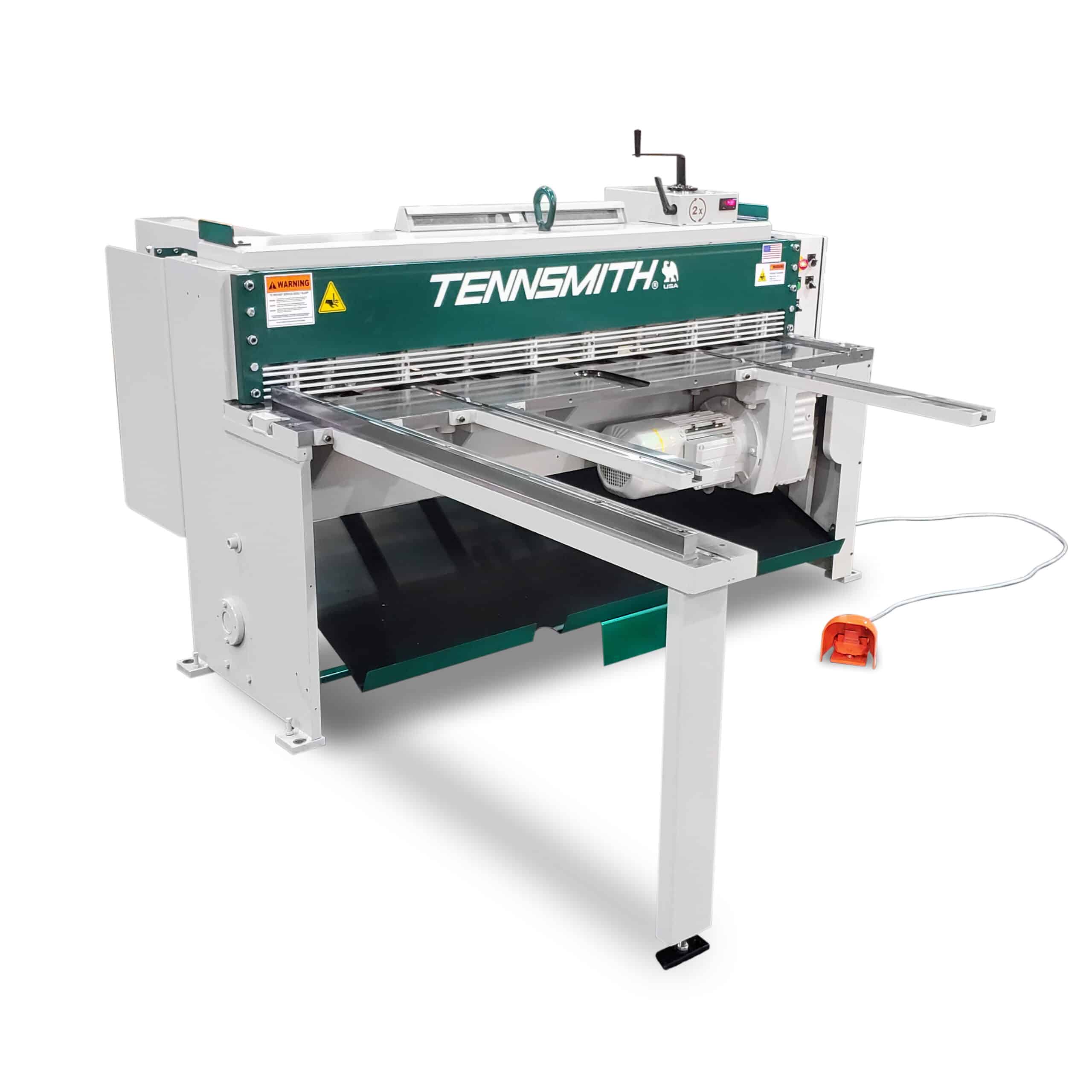

52-1/2" mechanical shear with 10-gauge mild steel capacity, 14-gauge stainless steel capacity, and a 24" back gauge.
Request Quote for LM410Compare LM Series Shears Models
| Specification | LM410 | LM610 | LM810 | LM1010 | LM1210 | LM1012 | LM1014 | LM1214 |
|---|---|---|---|---|---|---|---|---|
| Mild Steel Capacity | 10 GA | 10 GA | 10 GA | 10 GA | 10 GA | 12 GA | 14 GA | 14 GA |
| Stainless Steel Capacity | 14 GA | 14 GA | 14 GA | 14 GA | 14 GA | 16 GA | 18 GA | 18 GA |
| Maximum Cutting Length | 52.5" | 60-1/2" | 97" | 121" | 145" | 121" | 121" | 145" |
| Back Gauge Range | 24" | 24" | 30" | 30" | 30" | 30" | 30" | 30" |
| Full-Length Strokes | 35 SPM | 35 SPM | 35 SPM | 35 SPM | 35 SPM | 35 SPM | 35 SPM | 35 SPM |
| Motor | 7.5 HP | 7.5 HP | 10 HP | 12.5 HP | 2 × 7.5 HP | 7.5 HP | 5 HP | 7.5 HP |
| Hold Downs | 8 | 12 | 14 | 16 | 18 | 16 | Solid Bar | 18 |
| Floor Space | 72" × 68" × 55-1/2" | 81" × 69" × 56" | 116" × 72" × 56" | 145" × 78" × 60" | 169" × 78" × 60" | 140" × 72" × 56" | 143" × 72" × 56" | 164" × 72" × 56" |
| Shipping Weight | 3,400 lbs | 4,000 lbs | 6,800 lbs | 9,400 lbs | 11,400 lbs | 6,400 lbs | 5,900 lbs | 7,350 lbs |
On mobile, swipe left or right to compare models.
