Automatic Duct Liner System
Automatic Duct Liner System
Automated duct liner application system with patented liner shearing, adhesive application, and multi-head pin spotting for integration into coil line duct fabrication.
Overview

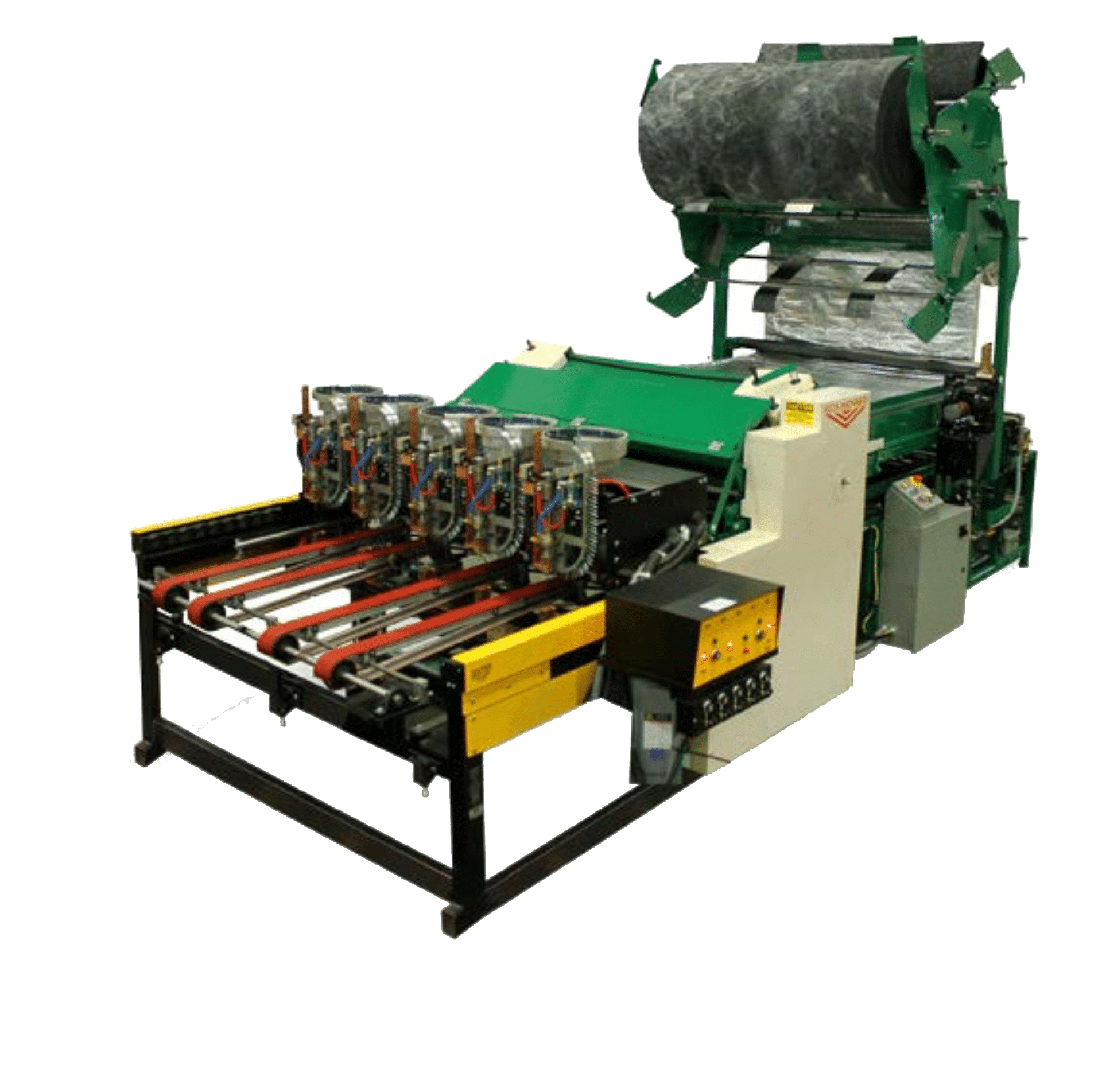

The Vicon Automatic Duct Liner Application System automates the processes of unwinding, cutting, applying adhesive to sheet metal, and securing duct liner as part of a coil line duct fabrication system.
The system features Vicon’s patented heavy-duty liner shearing technology, capable of processing liner materials designed for coil line duct fabrication without requiring tooling or blade changes. It accommodates various liner materials, including Armaflex® and K-Flex®.
Safe push-button controls allow fast threading and crop cutting when changing insulation rolls. An automatic adhesive extrusion system applies adhesive, while the multi-head pin spotter positions pins in rows spaced to SMACNA standards for low- and high-velocity airflows. Pin placement can also be customized through the Vicon Control System.
The system incorporates an industry-leading guiding system that requires no adjustment, open access to the glue heads for easier cleaning, and a multi-speed drive for optimum pinning speed or bypassing unlined duct.
Specifications
Vicon Automatic Duct Liner System technical specifications
