TDX Rollformer

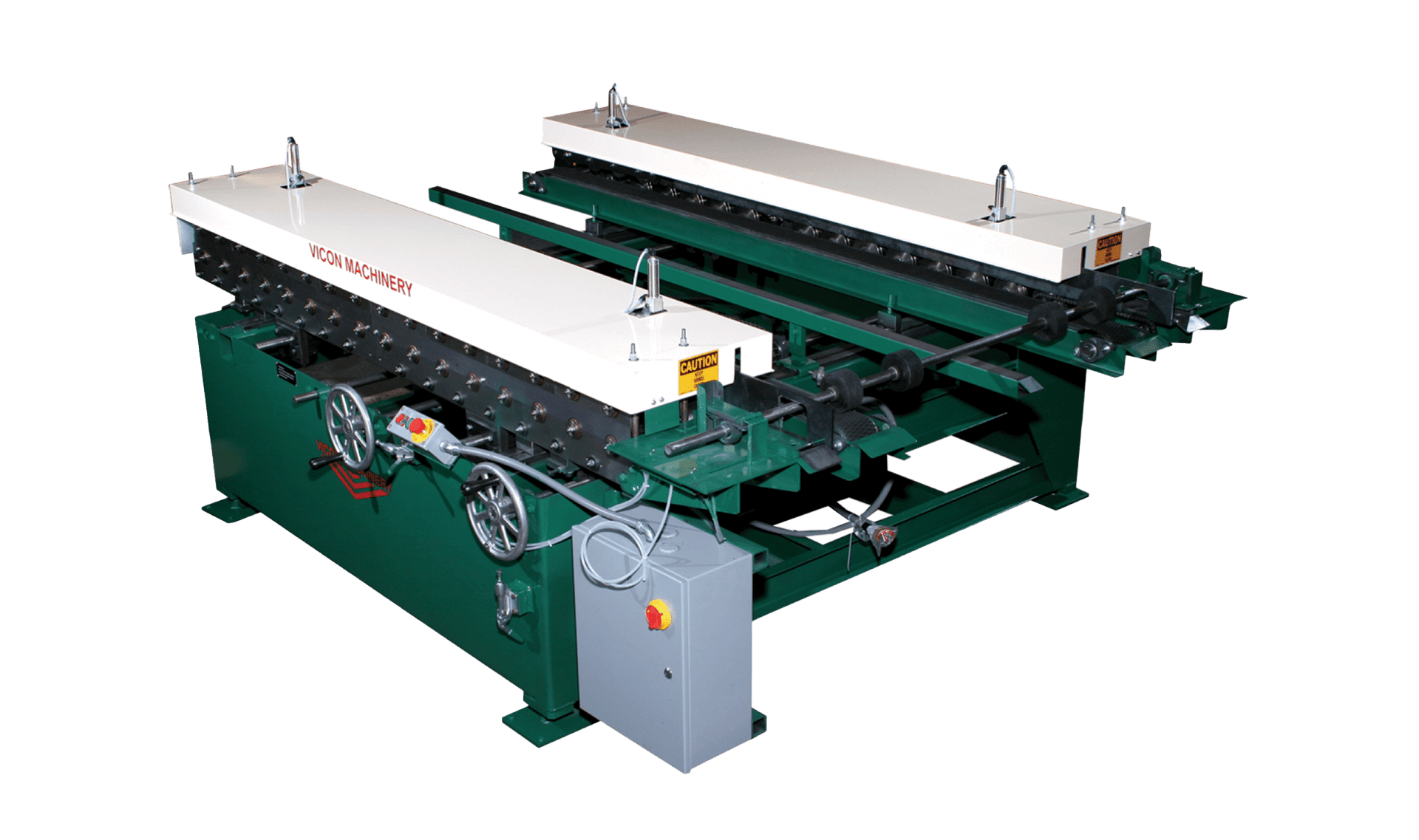

Dual-head rollforming system designed to produce T-25a or T-25b SMACNA-approved transverse flange connectors with 16 forming stations on each rollform head.

Material Capacity 18–26 Gauge
Forming Stations 16 Per Head
Motor 10 HP
Request Quote

Overview

The Vicon Dual Head TDX Rollformer is designed to produce either T-25a or T-25b SMACNA-approved transverse flange connectors as part of an automated duct fabrication system.

Each rollform head incorporates 16 forming stations for consistent, high-quality forming. Precision ball screws provide parallelism and quick changeover, while large heavy-duty bearings with inner races and grease fittings help protect the rollformer and extend machine life.

Pneumatically operated bypass guides with wedge-grip conveyors allow blanks to pass through the machine for other types of duct connections. A heavy-duty roller chain drive, rugged stress-proof roller spindles, and oil-bath gear reducer provide reliable, quiet, long-life performance.

Specifications

Vicon Dual Head TDX Rollformer technical specifications

Specification
Dual Head TDX Rollformer
Material Capacity
Mild Steel: 18–26 Gauge Thickness Change Adjustment: None Required Optional Capacity: 16 Gauge Mild Steel Available Upon Request
Flange Forming
Connector Type: T-25a or T-25b Standard: SMACNA-Approved Transverse Flange Connector Forming Stations: 16 Per Rollform Head
Motor & Drive
Motor: 10 HP Gear Reducer: Heavy-Duty Oil Bath Drive: Heavy-Duty Roller Chain Belts: None
Rollforming System
Roller Spindles: 1-1/4″ Diameter Stress-Proof Bearings: Heavy-Duty with Inner Races and Grease Fittings
Positioning
System: Precision Ball Screws Function: Parallelism and Quick Changeover
Material Handling
Bypass Guides: Pneumatically Operated Conveyors: Wedge-Grip
Options
Right-Angle Flange: “Grease Duct, Welded Duct” Option Rollform Tooling: Industrial Hard Chrome-Plated

Interested in this machine?

Contact Ritchie & Sons for pricing, availability, additional specifications, or help determining if this machine is right for your application.

Request a Quote
