Duct Brake

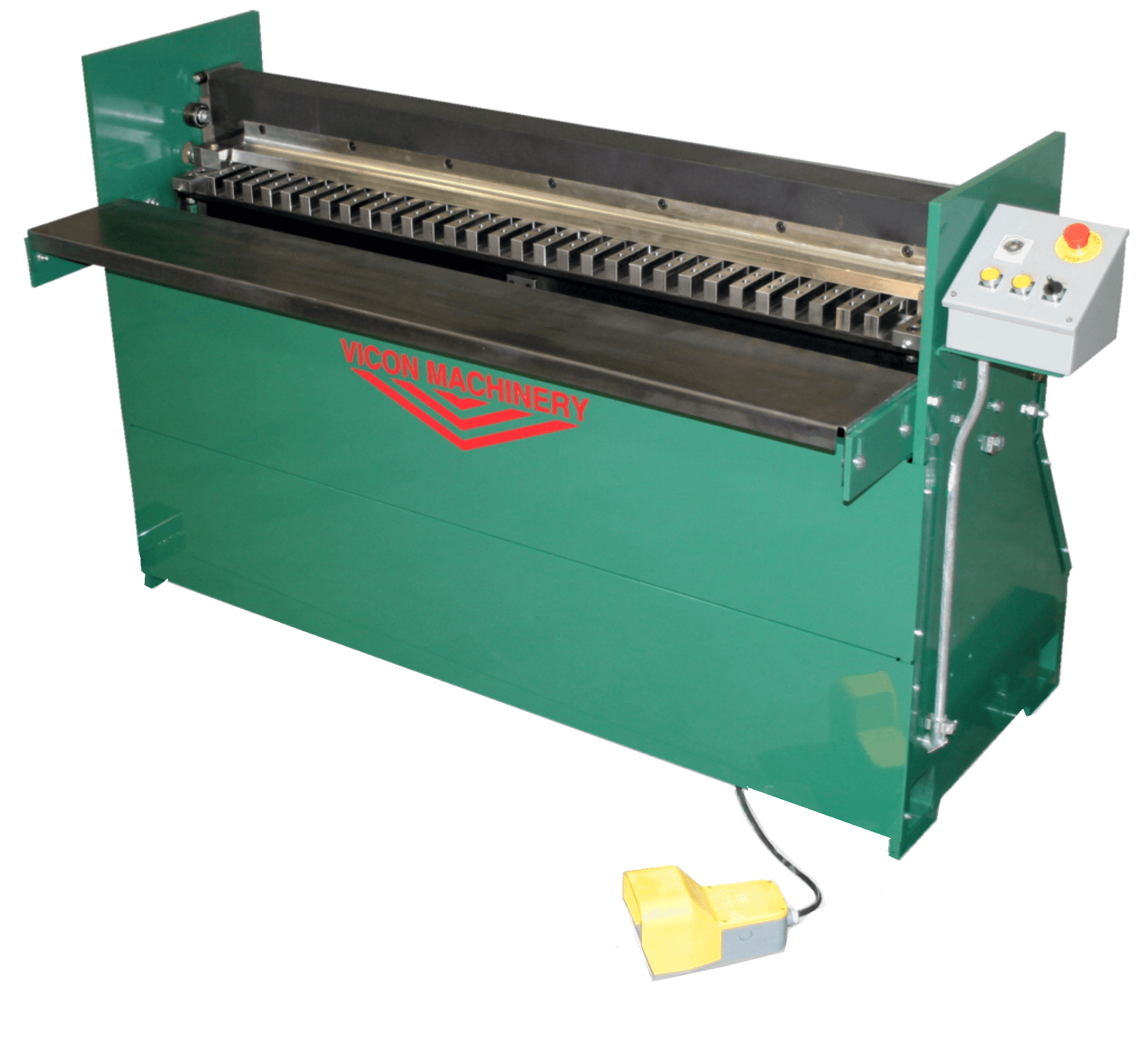

Heavy-duty pneumatic duct brake with 16-gauge × 5' bending capacity for 90° forming of TDX and Slip & Drive ductwork.

Bending Capacity 16 Gauge × 5'
Liner Capacity Up to 2"
Air Requirement 80 PSI / 5 CFM
Request Quote

Overview

The Vicon Duct Brake is designed for positioning and 90° bending of TDX flanged ductwork, including L-Duct Sections, Full Wrap Duct, and fittings.

The machine provides 16-gauge × 5′ bending capacity and accommodates up to 2″ of liner when forming lined duct. A pneumatic forming cycle with single foot-switch operation provides efficient forming of TDX or Slip & Drive ductwork.

Manual or push-button controls and a timer for bend sequences provide straightforward operation, while the adjustable-height table accommodates TDX, Slip & Drive, and raw material. Precision heavy-duty construction provides a durable platform for demanding duct fabrication applications.

Additional features include a front support apron and a retractable notch positioning guide that helps locate bends while allowing easier part removal.

Specifications

Vicon Duct Brake technical specifications

Specification
Duct Brake
Bending Capacity
Mild Steel: 16 Gauge × 5′
Lined Duct
Maximum Liner Capacity: 2″
Full Wrap Duct
Minimum Unlined Duct Size: 6″ × 6″
Forming
Bend Angle: 90° Operation: Pneumatic Forming Cycle Foot Control: Single Foot Switch for TDX or Slip & Drive
Controls
Operation: Manual or Push Button Bend Sequence: Timer Controlled
Table
Height: Adjustable Applications: TDX, Slip & Drive and Raw
Material Handling
Front Support: Support Apron Positioning: Retractable Notch Positioning Guide
Air Requirement
Pressure: 80 PSI Air Consumption: 5 CFM
Electrical
Power: 115V / Single Phase
