Vicon’s Patented Pittsburgh Seam Closer

Patented heavy-duty seam closer for 16–26 gauge duct from 12" to 60" long, featuring Vicon's Single V forming roll for closing Pittsburgh seams from either side.

Overview

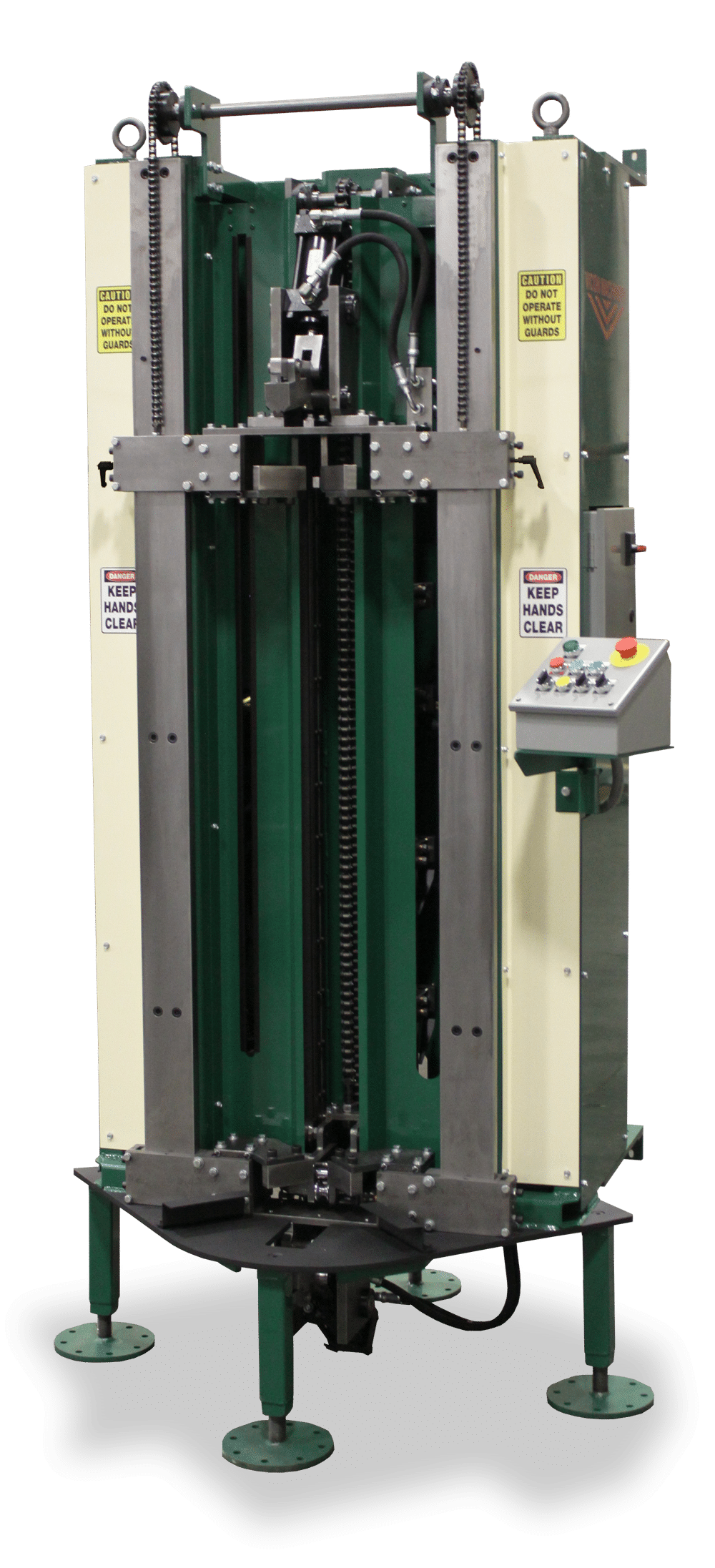

The Vicon Patented Pittsburgh Seam Closer is designed to efficiently close Pittsburgh seams on ductwork from 16 to 26 gauge and 12″ to 60″ in length.

Vicon’s heavy-duty Single V forming roll closes the Pittsburgh seam from either side of the duct, eliminating the need to turn the duct section over to align the Pittsburgh edge with the forming wheels. This helps reduce material handling, labor, and production time.

The forming roll features heavy-duty bearings and shafts along with grease fittings for extended service life. A counterbalanced top clamp head provides quick, tool-free setup, while large removable clamp pads simplify cleanup of duct sealant. A heavy-duty roller chain drive eliminates the use of cables.

Manual or automatic push-button controls provide straightforward operation, and the machine includes a hydraulic power unit and 3 HP motor available in single- or three-phase voltage configurations. The Pittsburgh Seam Closer is designed to replace most existing seam closers without requiring pit modifications.

Vicon’s Pittsburgh Seam Closer technology is protected by U.S. Patents 9,375,776; 9,511,409; 9,623,472; and 10,160,027.

Specifications

Vicon Pittsburgh Seam Closer technical specifications

Specification
Pittsburgh Seam Closer
Material Capacity
Mild Steel: 16–26 Gauge
Duct Length
12″–60″
Forming Roll
Heavy-Duty Single V
Forming Operation
Closes Pittsburgh Seam from Either Side
Roll Construction
Heavy-Duty Bearings and Shafts
Lubrication
Grease Fittings
Clamp Head
Counterbalanced
Clamp Adjustment
Tool-Free Setup
Clamp Pads
Heavy-Duty Removable
Drive System
Heavy-Duty Roller Chain
Controls
Manual or Automatic Push Button
Motor Power
3 HP
Electrical
Single or 3-Phase Voltage
Hydraulic Power Unit
Hydraulic
Installation Retrofit
Replaces Most Existing Seam Closers Without Pit Modifications
Pit Dimensions
Available Upon Request
