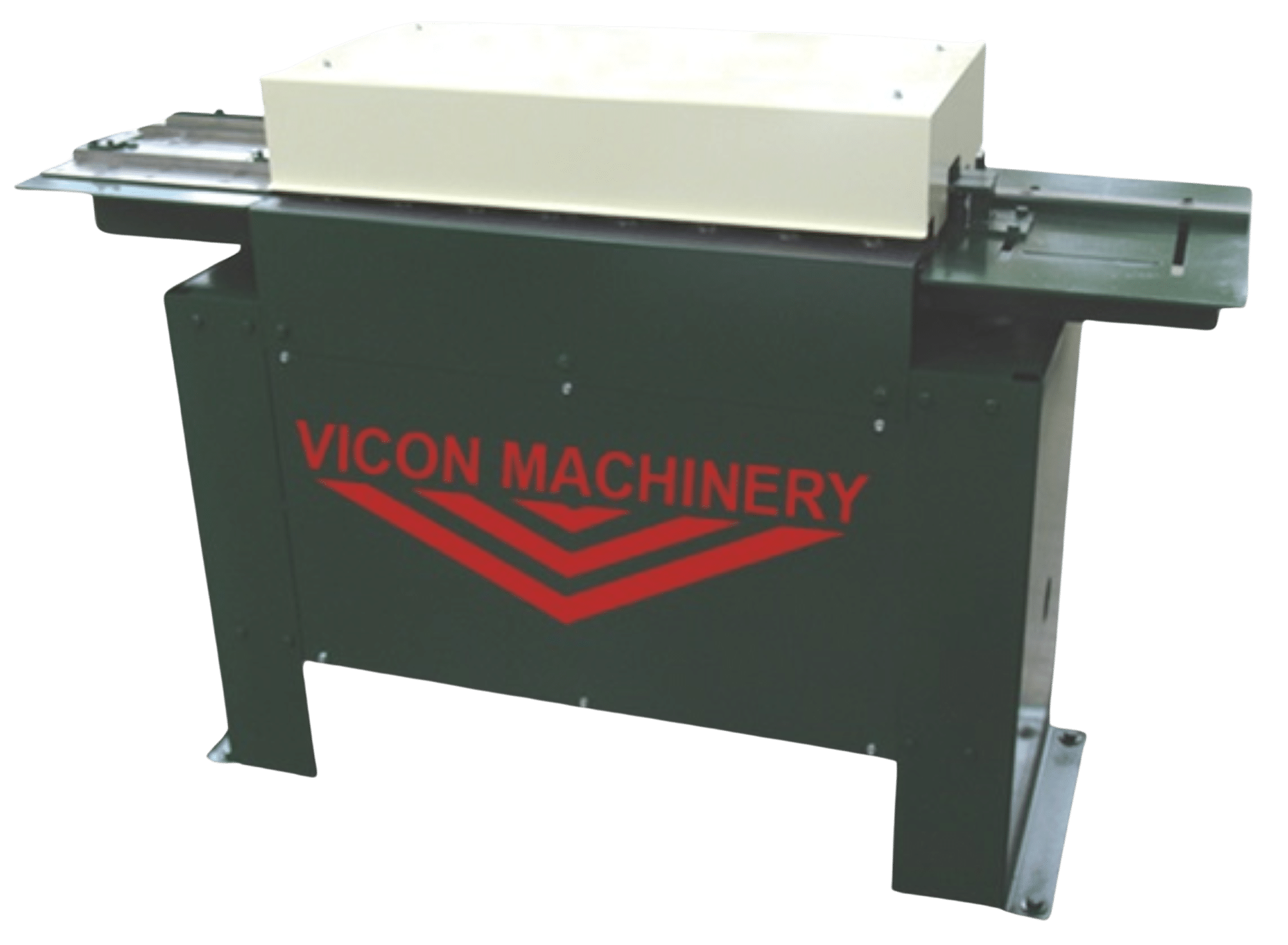

V8 Eight-Station Pittsburgh Rollformer

Eight-station Pittsburgh rollformer designed for HVAC duct fabrication, with optional Right Angle Flange, 4-in-1, and Acme Lock roll configurations.

Request Quote View Brochure

Overview

The Vicon V8 Eight-Station Pittsburgh Rollformer is designed for forming Pittsburgh seams in HVAC duct fabrication applications.

The machine features eight forming stations and heavy-duty construction, including 1″ diameter stress-proof roller shafts, large bearings with grease fittings, and an industrial oil-bath worm gear drive.

The V8 Pittsburgh Rollformer can also be equipped with optional Right Angle Flange, 4-in-1, or Acme Lock rolls for additional forming capabilities.

Specifications

Vicon V8 Eight-Station Pittsburgh Rollformer technical specifications

Specification
V8 Eight-Station Pittsburgh Rollformer
Forming Stations
8 forming stations for all roll sets with no opening roll required
Forming Speed
Up to 90 FPM
Small Pittsburgh
20–28 GA, 5/16″ pocket, 1″ notch — 90 FPM
Large Pittsburgh
18–24 GA, 7/16″ pocket, 1-3/8″ notch — 90 FPM
Heavy-Gauge Large Pittsburgh
16–20 GA, 7/16″ pocket, 1-3/8″ notch — 45 FPM
Roller Shafts
Heavy-duty 1″ diameter stress-proof roller shafts
Bearings
Large heavy-duty bearings with inner races and grease fittings
Shaft Design
Slide-out shaft design for easier maintenance
Shaft Keys
Woodruff shaft keys for added strength and precise alignment
Motor
5 HP / 3 phase motor coupled to an industrial oil-bath worm gear drive
Drive
Heavy-duty roller chain drive with no belts
Motor Protection
Heavy-duty motor starter with thermal protection overloads

Tooling Options

Tooling Option Capacity Location
Right Angle Flange Rolls 20–28 GA, 1/4"–7/16" Optional
Right Angle Flange Rolls 16–24 GA, 1/4"–7/16" Optional
4-in-1 Rolls 22–28 GA Optional
Acme Lock (Double Seam) Rolls 20–28 GA or 16–22 GA Optional
5 Gallon Sealant System Pittsburgh Lock, 1 Gun Optional
5 HP Single Phase Motor Optional
