Vicon Full Coil Line
Vicon Full Coil Line
Complete automated duct fabrication system combining coil processing, forming, material handling, and finishing equipment into an integrated production line.
Overview
The Vicon Full Coil Line is an integrated duct fabrication system designed to streamline production from coil processing through forming and material handling.
The system combines multiple specialized segments into a complete production line, allowing fabricators to configure equipment around their production requirements. Individual components handle coil feeding and processing, lockseaming, material transfer, cleat edge forming, TDX rollforming, duct lining, braking, and coil handling.
The modular design allows individual segments to work together as a complete system while providing flexibility for shops to configure or expand their production line as requirements change.
Segments of the Coil Line
Explore the machines and processing segments that make up the complete system.
Front-end coil processing system with feeding, straightening, beading, notching, and heavy-duty shearing.
View Machine →

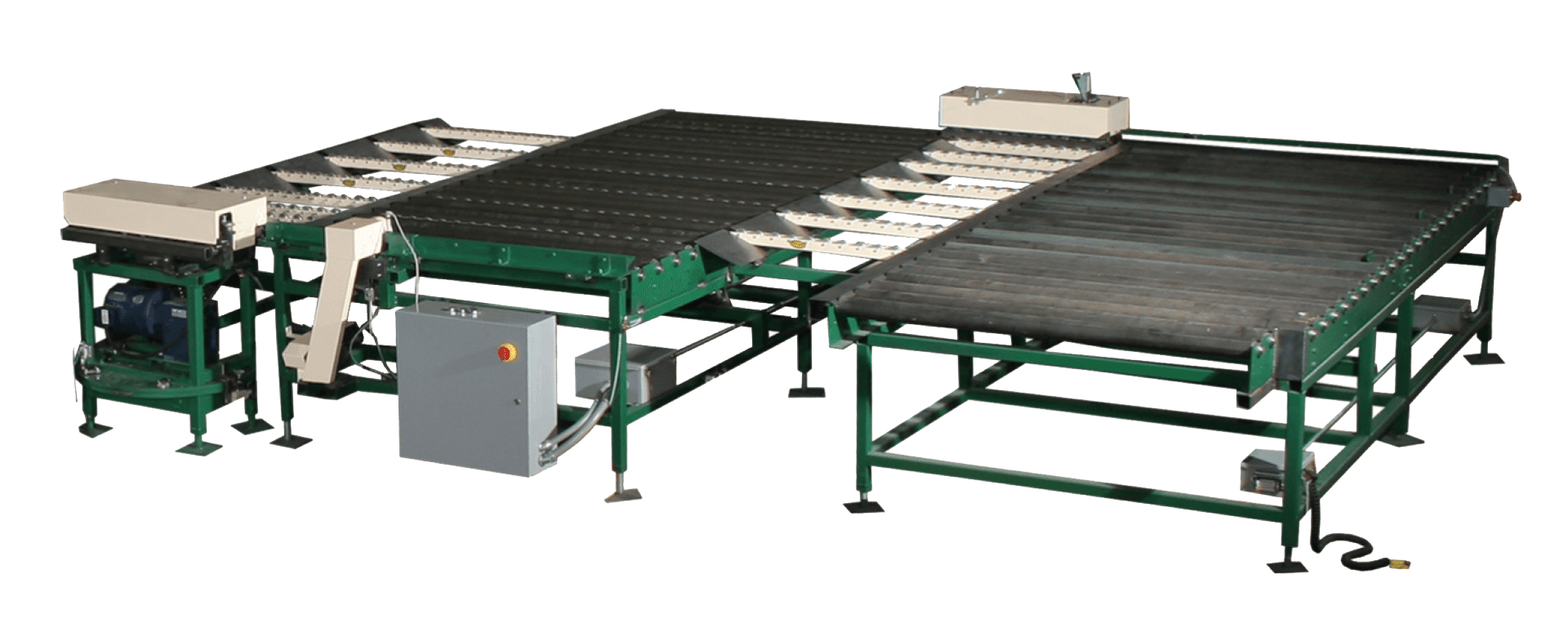

Integrated lockseaming and material transfer system for moving duct sections through the production line.
View Machine →

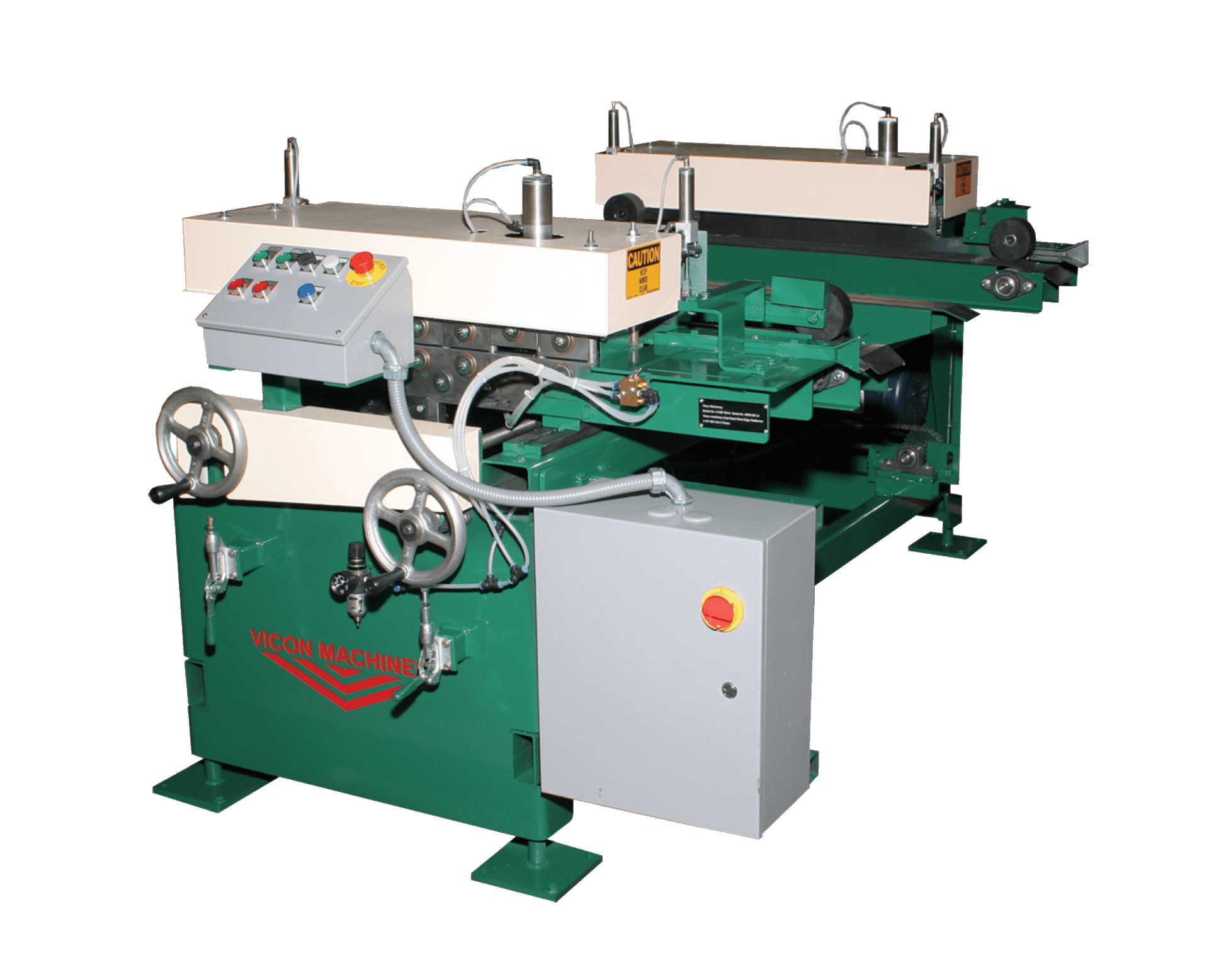

Dual-head forming system for efficiently producing cleat edges as part of the automated duct fabrication process.
View Machine →
Dual-head rollforming system for producing TDX transverse duct flange profiles.
View Machine →
Automated liner processing system designed to integrate duct lining into the Full Coil Line workflow.
View Machine →
Automatic bending system for forming full-wrap duct sections as part of the integrated production line.
View Machine →
Material handling system designed to support efficient coil loading, feeding, and processing.
View Machine →Planning a complete duct fabrication system?
